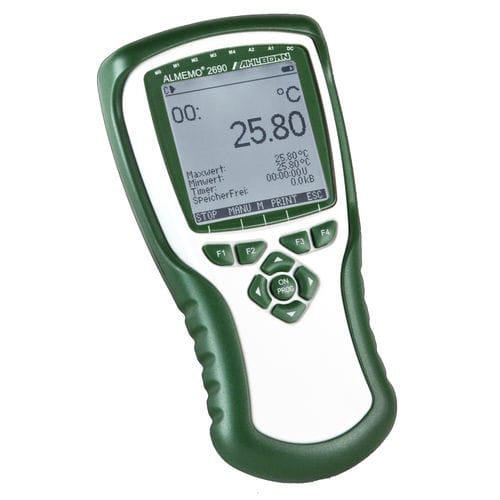

Pressure data logger ALMEMO® 2690-8A

humidityuniversal

Comprehensive range of functions for all application areas Increased measuring accuracy, fast measuring rate Generously dimensioned graphics display, bright illumination 5 measuring inputs Runs on rechargeable batteries, charging via the device itself Technical data and functions Increased measuring accuracy and stability Fast measuring rate, up to 50 measuring operations per second. With SD memory card, up to 100 mops, optional for 1 channel up to 500 mops 5 measuring inputs, electrically isolated Integrated atmospheric pressure sensor, for automatic pressure compensation, inter alia for Pitot tube flow measurement and humidity variables Over 65 standard measuring ranges Support for ALMEMO® plugs with multi-point adjustment, special linearization, and special measuring ranges Option KL for independent multi-point adjustment or special linearization programmable in 30 points and management of calibration data saved in the sensor connector and the measuring instrument Option GT for higher measuring quality thanks to electrical isolation between measuring inputs and device power supply (device ground) Improved cold junction compensation with 2 sensors Data logger with internal EEPROM, sufficient for 200,000 measured values, configurable as linear or ring memory Memory connector with micro SD (accessory) Sleep mode for long-term recording Generously dimensioned graphics display, bright illumination, large display of measured values Measured values can be displayed graphically in line chart or bar chart form or numerically in various sizes.
