medical gas pressure regulator / adjustable-flow / high-pressure
Max.: 15 l/min (3.96 us gal/min)
Min.: 1 l/min (0.26 us gal/min)

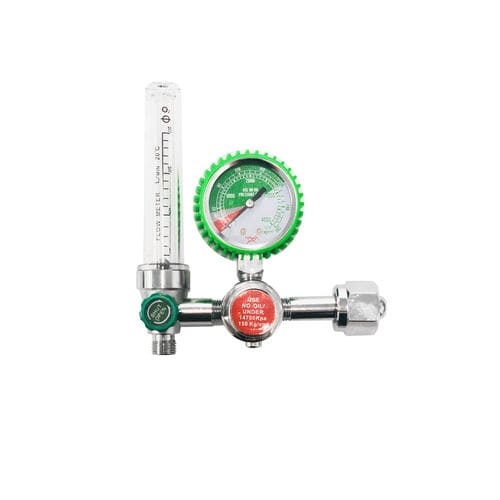

Medical Oxygen Regulator
Amcaremed Medical offer a flexible and different connecting thread type medical oxygen regulators for cylinder. you could choosing 1-10 L / min ,1-15L / min two flow ranges . All of the oxygen regulators have easily accessible flow adjustment knobs. Durable and accurate using.
Oxygen Regulator Model: AM-O-RG-02
Input pressure: 15 MPa
Output pressure : 0.2-0 .3 MPa
Safety valve: 0.35±0.05 MPa
Flow rate :1-10 L / min ,1-15L / min
OutPut Connection Screw Thread : 8mm
Connecting thread: G 5 / 8, CGA540, male G 5 / 8, G3/4, DIN477 and CGA870.
