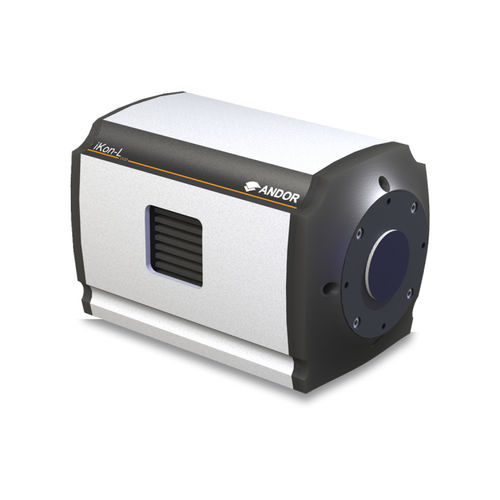

Andor’s iKon-L HF is built for scientific imaging! The outstanding design brings together the key elements in a single optimized format; the highest QE (95%) Back-illuminated sensor, a single directly bonded FOP and a unique spring-loaded "Soft Dock" mount. This design delivers the highest transmission and spatial resolution optical performance combined with the ultra-low noise performance of the outstanding iKon-L platform.
Fiber optic front
Peak QE of 95%
13.5 x 13.5 μm pixel size
Large area 2048 x 2048 sensor
TE cooling to -35°C
The outstanding design brings together the camera’s key elements in a single optimized unit: the highest QE (95%) Back-illuminated sensor, a single directly bonded FOP and a unique spring-loading “Soft Dock” mount. This design delivers the highest optical performance high transmission, spatial resolution performance along with the ultra-low noise of the outstanding iKon-L platform.
This is the camera of choice for indirect high energy applications, energies from soft to hard X-ray were high spatial resolution imaging of low flux signal is required. We offer three variants to cover the most common requirements all of which can be further modified or changed to suit evolving need. The unique feature “Soft Dock” spring-loaded fibre optic allows quick and safe mounting of the camera to a wide variety of fragile instrumentation, streak cameras, image intensifiers as well as easy placement of a full range of “off the shelf” scintillators.
Soft Dock - Unique spring-loaded Fibre optic design allows the camera to be mounted safely and securely against fragile instrumentation
