Hydrogen generator HGH series
oxygenlaboratoryfloor-standing

hydrogen generator
hydrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
hydrogen, oxygen
Applications
laboratory
Configuration
floor-standing
Other characteristics
high-purity
Output

Max.: 1 l/min
(0.2642 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Output pressure

Max.: 0.4 MPa

Min.: 0 MPa

Gas purity

100 %

Rated capacity

180 W
(0.2 hp)

Description

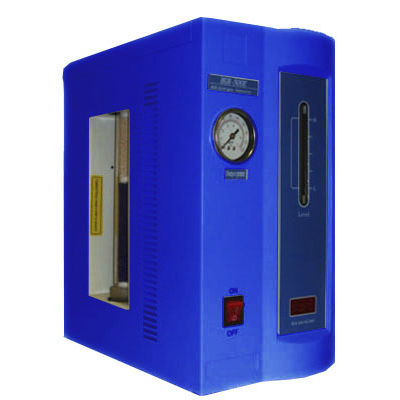

HGH-300 and HGH-500 high purity hydrogen generators are based on the technology of astronautic fuel cells, in which hydrogen is produced by the electrolysis of water, and the produced oxygen is released into the atmosphere. The hydrogen generator consists of electrolyzing/separating pool, power supply, pressure control, desiccation& purification, flow display etc. The core part -- electrolyzing & separating pool, uses a tube shaped positive pole and a plate shaped negative pole. Both poles are made of stainless steel. The electrolyzing & separating pools store electrolytes, produce hydrogen as well as release hydrogen at the same time. The HGH series hydrogen generators have the advantages of large electrolyzing area, low temperature of the pool, better performance, high production and high purity of hydrogen. The HGH300/500 Hydorgen Generator has been specially designed to prevent liquid from back-flowing. features HGH300/500 Hydrogen Generator is very easy to operate -- all you need is to turn on the switch. The pressure of released hydrogen is steady. The flow rate is digitally displayed on the LED display. The only material that the instruments consume is distilled water. The liquid storage, hydrogen electrolyzing and desorbing are integrated together in the instrument The hydrogen generator features large electrolyzing area, low pool temperature, long service life combined with high production and high purity of hydrogen. The HGH300/500 Hydrogen Generator has specially designed components that prevent liquid from back-flowing. As a result, there is no need to change the discolored silica gel frequently.
