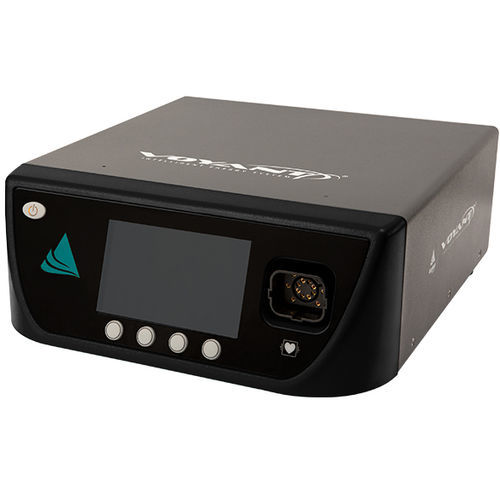

Bipolar cutting electrosurgical unit EA020

laparoscopic surgeryradiofrequency

Advanced Energy The EA020 Voyant electrosurgical generator is an advanced bipolar generator compatible with all Voyant devices. Seamless Software Updates The Voyant Intelligent Energy system delivers the latest technology through the device key, eliminating the need for generator software updates. Enhanced Safety and Reliability Calibration and verification checks are performed automatically during every startup, minimizing preventive maintenance. Easy Preventive Maintenance Output verification testing can be run at the touch of a button, the results being displayed on-screen. Sleek and Simple Design The Voyant generator boasts a small profile and a user interface that is easy to use. Plug and Play System Simply turn on the generator and connect a Voyant device. The system is ready to use! Weight - 14.5lb. (6.6kg) Depth - 13.8in. (35.1cm) Width - 12.0in. (30.5cm) Height - 4.4in. (11.3cm) Power rating - 29 VA to 375 VA, ±18.75 VA Normal voltage rating - 15 Vrms to 150 Vrms, ±7.5 Vrms High voltage rating - 150 Vrms to 300 Vrms, ±30 Vrms Normal voltage current rating - 0.5 Arms to 8 Arms, ±0.25 Arms High voltage current rating - 0.5 Arms to 4 Arms, ±0.25 Arms Cart weight - 66.58lb. (30.20kg) Cart depth - 29.97in. (76.12cm) Cart width - 19.29in. (49.00cm) Cart height - 39.85in. (101.22cm) Maximum loaded cart weight - 253.97lb. (115.2kg) Maximum cable length - 16.4ft. (5m) Minimum-rated cable and connector current - 10 A Minimum-rated cable and connector voltage - 125 VAC Cable connection at equipment - IEC 60320 type C13 connector
