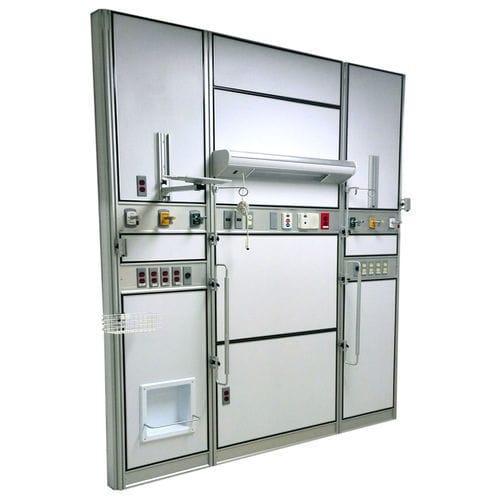

Wall-mounted bed head unit

verticalmodularfor intensive care service

Medical HeadWall system, to organizes medical Gases, electrical, data and medical auxiliary supports to optimizing space in patient care areas improving a better attention by medical staff, includes pre-assemble médical gas copper piping, electrical and data wiring inside steel galvanized internai pipes covering. Structure: • Aluminium extrude profile 6063 T5 alloy, 2.5 to 3mm profile thickness meeting ASTM B-221-02 A/A structure made, natural aluminum anodized finish. Medical headwall structure includes vertical services track rails to slide and support of auxiliary médical equipment and devices by each side of médical headwall. Front Panels: • MDF wood composite front panels 16mm thickness with décorative plastic laminate surfaces • Aluminium sheet powder coating finish surface) high pressure cold bending MDF panel glued, a phenolic or aluminum foil like fire retardant to back side of composite panel. Settings: • As a false wall overlaid with installations with a one service face. • As a false wall partition with a minimum depth of 10cm with one service face or with two service faces (both sides). Mounting Accessory Holder on Vertical service rails with différent configurations (Sliding Clamp and Articulated Arm) for: • I.V. Hook system supports. • Vital Signs Patient Monitor support. • Infusion Pump supports. • Vacuum Bottle holder support. • Médical Baskets. • Blood Pressure Gauges support. • Medical Auxiliary Equipment supports. Structure: • 4 vertical service track rails by each side (8 rails total) System Host Capacity: • Patient ligthing • Electrical outlets • Voice and Data • Medical gas outlets • Medical auxiliary equipment support
