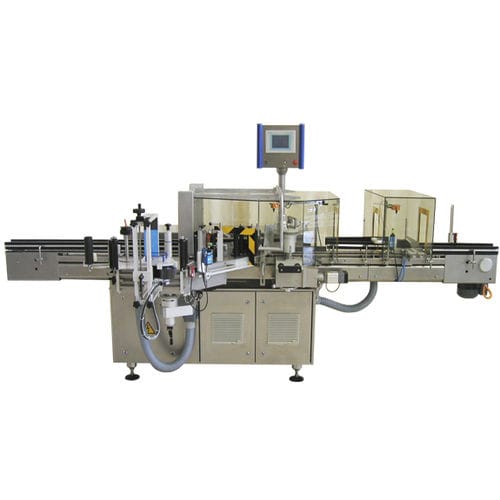

bottle labeling machine / for vials / for ampoules / automatic
Type 604 Bausch Advanced Technologies

{{requestButtons}}

Characteristics

  • Applications:

    bottle, for vials, for ampoules

  • Operation:

    automatic, in-line, rotary

Description

604 is a fully automatic, roll-fed labeler, able to process container sizes of up to 160 mm in diameter and 320 mm in height. The containers can be fed from an upstream machine via a rotary table, from a conveyor, or even manually. After the labels have been imprinted by a hot-foil, thermo-transfer or laser printer, they are gently transferred to the labeling station and applied to the containers by smoothing belts and rollers. To achieve a compact machine footprint, the electronic control cabinet is integrated into the machine base.

Main Features:

Highly flexible and compact design
User-friendly touch screen operation and system control via PLC
Containers are discharged into trays or a machine downstream
A wide variety of options like barcode scanner, label position and label presence check, as well as several printer models are available

*This machine is only suitable for large, stable standing containers. For labeling of small and/or unstable containers please refer to the section “up to 24,000 pc/h”.
