The possibility of locking medication carts and monitoring the administration of medication is becoming increasingly important.
Access to the EMR (Electronic Medical Record) on the ward is gaining in importance.
Belintra offers various locking options. For medication carts equipped with IT this is implemented using USB control via the PC to grant access through badge, password or other identification methods.

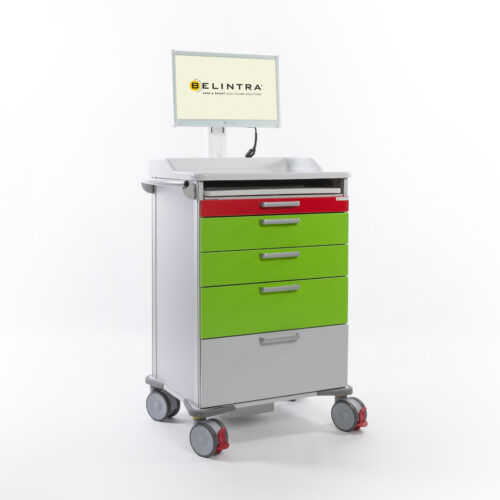

This medication cart can be fitted with modules 600 x 400 mm.
To equip your medication cart with IT you need the following components.
Belintra Powered Back incl. battery
Recommended IT components Hardware:
Intel® NUC i3 or i5 Mini PC
Neovo X22 Screen or Neovo TX22 Touch Screen
Product characteristics
Belintra Powered Back Pack
Intel® NUC i3 or i5 Mini PC
Neovo screens
Battery
Belintra Powered Back Pack
The Back Pack is an external housing to build in hardware and to properly connect the
screen, keyboard, badge reader, scanner etc. It includes the WIFI antenna and a COW
Controller as well.
The COW controller is an intelligent battery charger with integrated double DCDC conversion and a USB connection to the PC. It also monitors the battery status and maintains a log file of the charging / discharging.
For the battery you can choose between a VRLA battery or a LiFePO4 battery. The charging status of the battery can be visually checked by means of the LED on the Powered
Back Pack and via the PC screen thanks to the “Battery Monitor Software”.
You can also equip the Medicart with a non-Powered Back Pack for the assembly of
all-in-ones.
Intel® NUC i3 or i5 Mini PC
The proposed Intel® NUC Mini PCs have full desktop performance in a small and
compact device.
