laboratory fume hood / for clean rooms / chemical / floor-standing
BBS-H1300, BBS-H1800 Biobase

{{requestButtons}}

Characteristics

  • Applications:

    laboratory, for clean rooms

  • Function:

    chemical

  • Configuration:

    floor-standing, portable

  • Other characteristics:

    horizontal laminar flow, with HEPA filter

Description

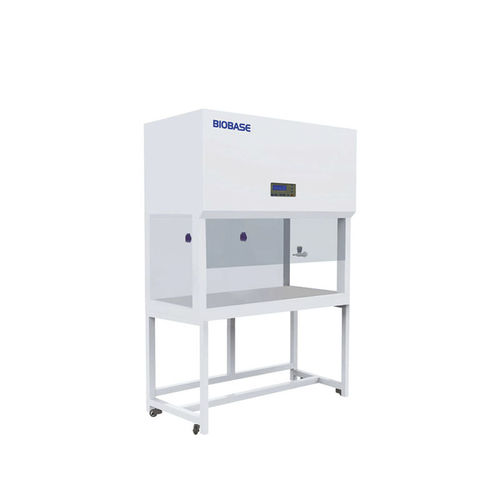

Laminar Flow Cabinet –sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

Model BBS-H1300 BBS-H1800
External Size(W*D*H) 1300*825*2040mm 1800*825*2040mm
Internal Size(W*D*H) 1200*500*570mm 1700*500*570mm
Work Surface Height 750mm
Display LCD Display
Airflow Velocity Average of 0.3~0.5m/s
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table:304 stainless steel
Side and Front Window: 5mm toughened glass, anti-UV
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <60dB
Front Window Motorized
Max Opening 430mm
LED Lamp 28W*1 28W*2
UV Lamp 30W*1 30W*1
Emission of 253.7 nanometers
Consumption 400W 700W
Caster Universal caster with leveling feet
Waterproof socket Two, total load≤500W
Power Supply AC220V±10%, 50/60Hz;  110V±10%, 60Hz
Standard Accessory LED lamp, UV lamp*2, Base stand, Gas Tap, Waterproof socket*2,
Water Tap (only for BBS-H1800)
Gross Weight 254kg 328kg
Package Size(W*D*H) 1450*1060*1650mm 1950*1060*1600mm
