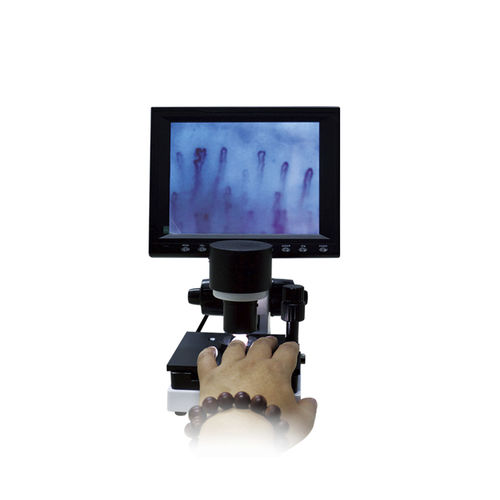

Optical microscope WXH-8
digitallaboratory3D

optical microscope
optical microscope
optical microscope
Add to favorites
Compare this product


Characteristics

Type
optical, digital
Applications
laboratory
Observation technique
3D
Configuration
benchtop
Options and accessories
with LCD screen, with color camera
Other characteristics
high-resolution
Weight

5.5 kg, 7 kg
(12.1 lb, 15.4 lb)

Description

Microcirculation microscope is used theearly diagnosis, guide treatment and observation forvaries diseasesincluding cardiovascular, diabetes, hypertension, stroke, rheumatoid arthritis, etc.It is widely used in medicine, health care products, human health consulting, beauty care and other fields.It is also used for individual microcirculation monitoring. Model WXH-8 WXH-10 WXH-12 Magnification 400X 480X 550X Display Size(mm) 161*121 204*153 185*240 Objective 10X Focus System Coaxial coarse/ Slightly adjusted, Z axis movement, Mechanical upper and lower limits Stage 360°revolve, X,Y axis movement ,moving range 30*80mm Illumination LED illumination with high brightness and lower consumption,new luminaire with lower temperature and 10,000-200,000h working life,90°revolve left and right Power Supply 12V Camera Color camera system, HD LCD display Standard accessory Aluminum box,Display screen, Power cable, Asphalt, Manual, Flip chart, Microcirculation flattery, Teaching CD Optional Software driven, Acquisition card, Dongle, AV cable etc. Packing Size(mm) 270*340*380 300*380*380 Gross Weight(kg) 5.5 7
