valve for the medical industry / solenoid / media separated
0331 Bürkert GmbH & Co. KG Fluid Control Systems

{{requestButtons}}

Characteristics

  • Applications:

    for the medical industry

  • Other characteristics:

    solenoid, media separated

Description

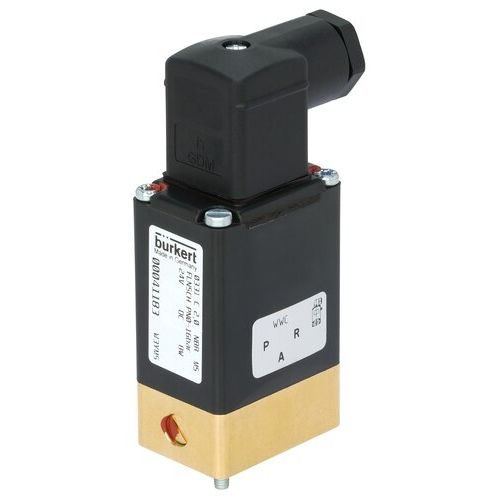

Direct-acting 2/2 or 3/2 way pivoted armature valve

The 0331 valve is a direct-acting, media-separated pivoted armature valve. It is available in 3/2 and 2/2-way versions. As a 3/2-way version, it can be used as a distributor or mixing valve. Various diaphragm material combinations and methods of operation are available depending on the application. The standard brass housing satisfies all European drinking water requirements. Stainless steel (316L), PVDF, and polypropylene housing versions complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. The 0331 is equipped with manual override for commissioning and testing. For reduced energy requirements all coils can be delivered with electronic power reduction or as an impulse version. The switching status can be indicated with position feedback as a binary or NAMUR signal. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65/67 – in combination with a stainless steel or plastic housing NEMA 4X.

Direct-acting, media-separated valve with diameter of up to DN 4
Pilot valve with Bürkert-specific flange design (SFB)
Maintenance-free pivoted armature technology
Suitable for aggressive alkaline and acidic solutions
Service-friendly, robust manual override
