chlorine tester / chlorine dioxide / for water analysis / on-line
MS02 Bürkert GmbH & Co. KG Fluid Control Systems

{{requestButtons}}

Characteristics

  • Tested parameter:

    chlorine, chlorine dioxide

  • Applications:

    for water analysis

  • Configuration:

    on-line

  • Other characteristics:

    automatic

Description

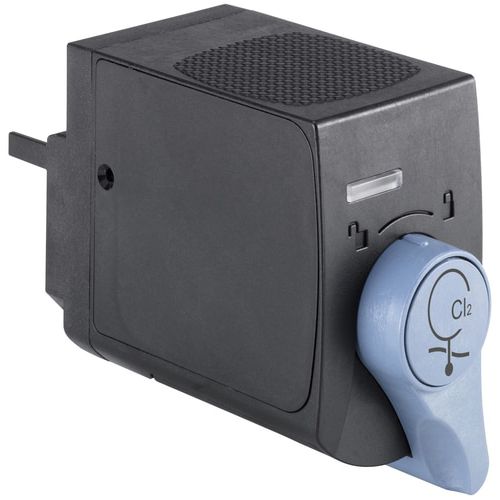

The device is selectable to measure chlorine or chlorine dioxide in water. It is used within the Online Analysis System Type 8905 by being plugged into a spare fluidic backplane slot. The sensor cube contains a high precision membrane covered amperiometric sensor, based on microelectromechanical systems technology (MEMS). The measurement signal shows the Cl2 or ClO2 content within the sample water. The chlorine measurement reflects either the available chlorine HOCl or, if coupled with a MS01 pH sensor cube for pH compensation, the free chlorine. The electrical and fluidic connections are made via the connection panel of the system. The sensor cube is communicating via büS, so the recognition at the Online Analysis System is fully automatic. When plugging into a system you will find the sensor in the list of büS members for further customized adjustments.

Fully compatible with büS systems and a wide range of further analysis sensor cubes
Optional pH compensated chlorine measurement
Modular sensor cube for hot swap (exchange during operation)
Minimal sample water flow needed
MEMS technology sensor
