Mortuary trolley CEAC04 series

coffinliftingtransport

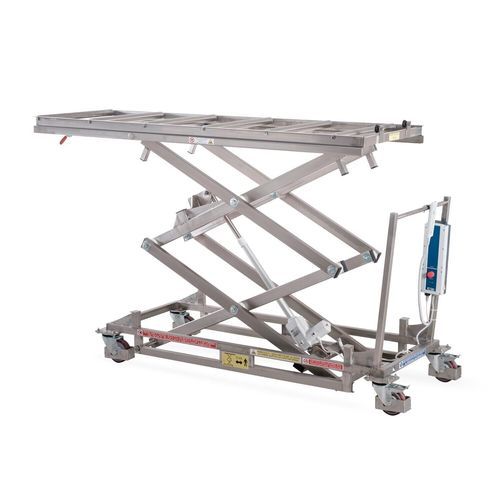

The electric lifting trolley is used both for the transport of bodies on stretchers and together with the cold rooms for the insertion and the extraction of stretchers by one operator. It is stainless steel with a double-scissors lifting frame to reach the 3rd upper place on the cold room. The electric lifting is given by a manual control system for activation and regulation. There is a flow regulator to prevent the load to low itself quickly damaging the operator, after that it has been lifted and it must be lowered. The supporting plane is used to place the stretcher that will be inserted in the proper cold room. It is equipped with 2 steering wheels and two free ones. With 175 kg load capacity, available in versions: lifting trolley with rolls Width - Height - Depth 195 cm - 40 (184) cm - 72 cm lift trolley with drives Width - Height - Depth 238 cm - 38 (181) cm - 72 cm lift trolley with plain plane Width - Height - Depth 224 cm - 39,5 (183,5) cm - 72 cm With 250 kg load capacity, available in versions: lifting trolley with rolls Width - Height - Depth 195 cm - 40 (184) cm - 72 cm lift trolley with drives Width - Height - Depth 238 cm - 38 (181) cm - 72 cm lift trolley with plain plane Width - Height - Depth 224 cm - 39,5 (183,5) cm - 72 cm
