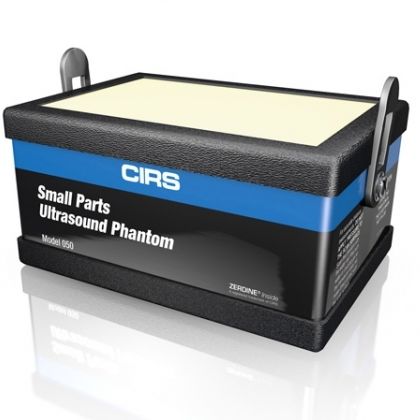

Ultrasound imaging test phantom 050

liver

Detachable water wells allow for testing curvilinear and endocavity probes Ensure over ten years of reliable use through reinspection and repair services Includes best in industry four-year warranty The CIRS Small Parts Ultrasound Phantom features a compact design ideal for high-resolution imaging systems with limited depth of penetration. Model 050 is made up of a proprietary tissue-simulating material called Zerdine® (1), which accurately simulates the ultrasound characteristics found in human liver. A series of wire targets included in the Model 050 will appear as bright dots or lines on the ultrasound image. These targets are made from nylon with a diameter of 0.1 mm. Our phantom also contains two known volumes, a 10 mm combination cyst-like/hyperechoic mass and anechoic focal lesions embedded within the phantom. These masses are made from Zerdine with a different contrast and attenuation relative to the background material. Key Tests Focal Lesion Detectability Uniformity Depth of Penetration Beam Profile/ Focal Zone/ Lateral Response Width Vertical Distance Measurement Horizontal Distance Measurement Axial and Lateral Resolution Elevational Resolution Low-Contrast Target Detectability High-Contrast Target Detectability Volumetric Measurement Accuracy Dead Zone Assessment
