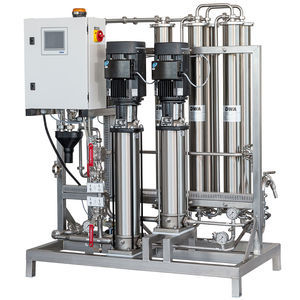

Hemodialysis water treatment plant MODULA

reverse osmosis

The modula  Reverse Osmosis concept was developed to incorporate the proven and reliable DWA standard of dialysis water treatment into a flexible design concept. Based on an economic, cost effective and adaptable system designed to comply with different international dialysis requirements and regulations. modula  uses high quality materials and superior manufacturing to fulfill the objective to achieving maximum hygiene, optimum safety, long life and reliability of permeate production – with guaranteed economy through low operating costs and economical water consumption. Compact design / modular construction Hygienic stainless steel tubing and frame Water saving technology Permeate recirculation Microprocessor controlled & monitored Autoflush system Secure inlet valve control 3-way valve for permeate to ring or drain Automatic on / off (two times per day) 2 sampling and disinfection points (raw water and permeate) 4-button control panel Back-lit display Monitoring parameters Security parameters Alarm history for 128 episodes Special service menu Automatic restart after power interruption of max. 5 minutes Connections: 2 status output (alarm, operational status) Tank monitoring and control
