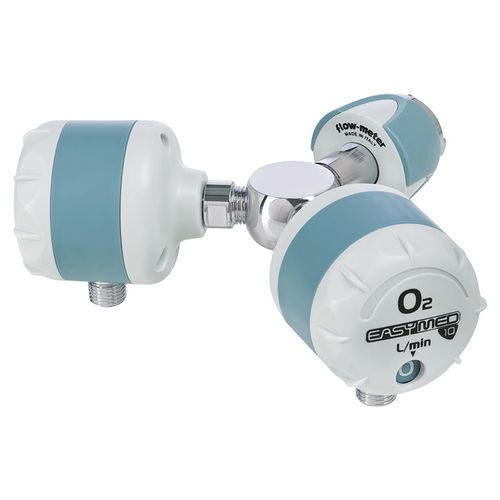

Double flow meter EASYMED® twin
oxygenairfor hospitals

double flow meter
double flow meter
double flow meter
double flow meter
Add to favorites
Compare this product


Characteristics

Type
double
Fluid type
oxygen, air
Applications
for hospitals
Connection type
plug-in type
Options and accessories
with calibrated orifices
Output

6 l/min, 14 l/min, 15 l/min, 30 l/min, 50 l/min
(1.585 us gal/min, 3.6984 us gal/min, 3.9626 us gal/min, 7.9252 us gal/min, 13.2086 us gal/min)

Pressure

466.6 Pa
(0.1 psi)

Weight

0 kg
(0 lb)

Height

65 mm
(3 in)

Width

54 mm
(2 in)

Description

The flowmeters type EASYMED® are top-quality instant flow measurement devices with calibrated orifices for regulating the dosage of oxygen and air in medical applications. They are manufactured with an integrated pressure reducer for the supplied pressure stabilization and with the outlet fitting with thread adapted to the various required applications. The body is made of impact-resistant polymer with brass plated fittings, while a large ergonomic control knob allows an operator smooth drive for the selection of the gas supply value among the 10 possible options. The calibration of the flow is ensured by orifices got on a metal support with the laser technology. The small size structure and the particular technical configuration allow the EASYMED® “dial” flowmeters to be able to supply flows of medical gas with extreme accuracy even in the most difficult conditions, such as in emergency mobile units. They do not need, compared to conventional variable area flowmeters having vertical indicator, to be always and only used in the upright position.
