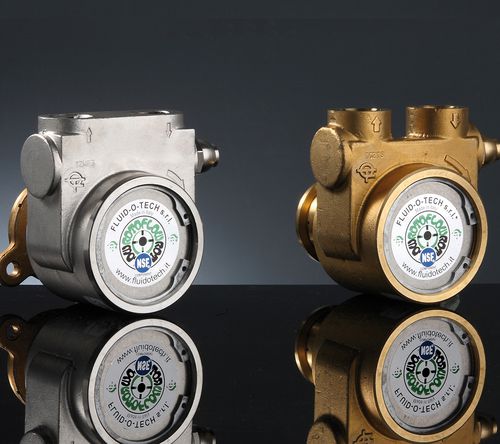

Rotary vane pump PO 500-1000
for liquids

rotary vane pump
rotary vane pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Fluid type
for liquids
Flow

Min.: 550 l/h
(145.29463 us gal/h)

Max.: 1,050 l/h
(277.38065 us gal/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232.06 psi)

Description

The PO 500-1000 series positive displacement rotary vane pumps are available with brass or stainless steel housing with ½” GAS or NPT ports and internal relief valve. The nominal flow rates range between 500 and 1000 l/h at 1450 rpm. Any vane pumps of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 320 GPH. Maximum discharge pressure is 230 psi (16 bar). This series mounts directly to widely available NEMA 48Y motor by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling. FEATURES Self priming Quiet operation Pulsation free flow Internal relief valve available Long service life NSF and WRAS listed
