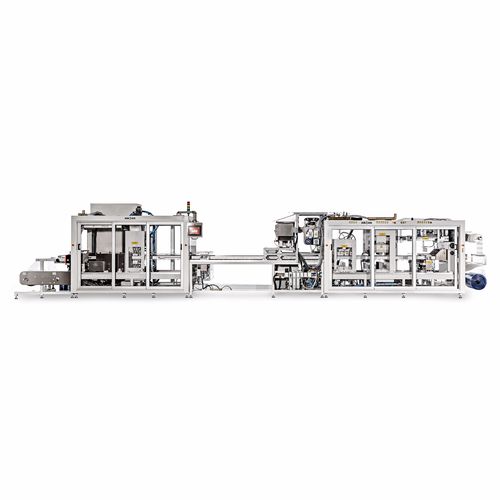

Automatic packaging system BPC 25M

for sterile materialsconveyorblister

Automatic online machine suitable for packaging in rigid blisters of medical devices and their subsequent sterilization. Features Automatic online machine suitable for packaging in rigid blisters of medical devices and their subsequent sterilization. Dedicated to the production of medium and long runs. Modular design through available options. Robust and accessible construction. Low operating and maintenance cost of the machine. Quick tool set change-over. Pressure forming that allows the molding of film up to 0.8mm thick with precise molding. PLC operated, touch-screen controlled. Steel-rule die cutter, which avoids misalignment in the cut. Film traction by chain conveyor. Available in two sizes: 350×250 mm in the case of the BPC25M. 500×350 mm in the case of the BPC35M. Suitable for clean rooms. Guarantees the packaging of medical products in accordance with GMP regulations. Validable in accordance with existing medical regulations. EU safety rules compliance The most common optional extras are: Customizable length of loading area. Dedicated printing and coding system (flexographic printers, inkjet based coders, etc) Automatic card feeder. Punching station for the euro-holder. Possibility to manufacture Blister to blister pack. Operation The BPC25M / BPC35M Medical integrates all the necessary operations for the manufacture of the blister according to the specifications necessary for clean rooms and validable according to specifications. The operations range from the thermoforming of the bubble from a roll, through the loading area, to the operations of sealing, individual punching of each of the figures and ejection of the finished blister.
