Description

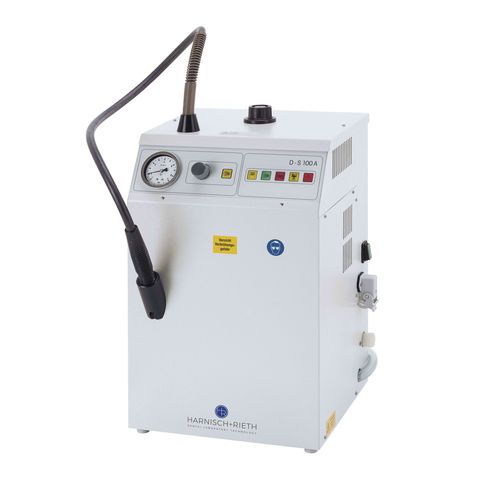

The D-S 100 A steam blasting unit achieves maximum quality and reliability. It enables straightforward and rapid cleaning, wax extraction and thorough degreasing for all laboratory tasks.
The D-S 100 A steam blasting unit has a permanent water connection and can also be refilled manually at any time. When the water supply is provided manually, the unit functions like the D-S 100 steam blasting unit. A highly effective heater gets the unit ready for operation in roughly just 4-5 minutes.
Details
The ergonomically designed and easy-to-hold hand piece is made of special, heat insulating,
solid plastic. The thermal steam hose connected to the hand piece is extremely flexible and has a textile protective sleeve.
Width325 mm
Depth305 mm
Height540 mm
Electrical connection220 V, 50 Hz
Power consumption2.6 kW
Steam temperature165 °C
Boiler volume2.3 l
Water supply tank5 l + permanent water connection
Safety valveOpens at 7 bar
Operating pressure5 bar
Temperature limiter175 °C
Weight20 kg without spray guard
HousingDurable, environmentally friendly stainless steel housing, RAL 9002, powder coated
Required fusing for mains connection16 A at 220 V
