Plug-in type vacuum regulator AEROsuc®

surgical

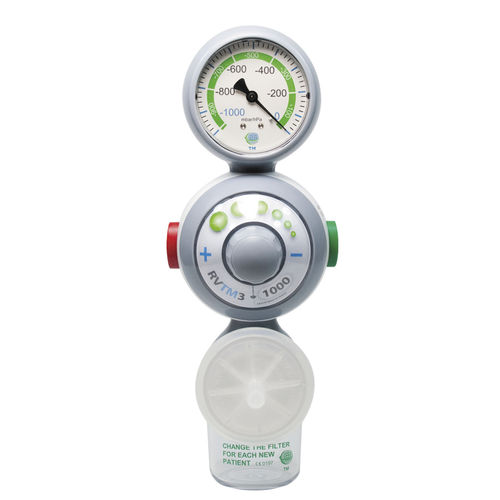

AEROsuc® – Vacuum Regulator in analogue HAG02-C2RV-ZGA (grey) The analogue vacuum regulator is according to DIN EN ISO 10079-3, for medical or surgical suction, for the connection to DIN couplings or wall boxes / vacuum lines in hospitals (ZGA). The Quality in Detail: - Max. flow 110 l/min (pump with flow 160 l/min) - Freely rotatable control valve at the stop - no blocking possible - Vacuum range: 0 - 250 mbar | 0 - 600 mbar | 0 - 1000 mbar - Manometer: analogue - Housing colour: grey or yellow - Easy click closure (90° pivotable) for easy attachment and detachment of the overflow container - Connecting nozzle made of metal, built directly into the regulator body - With shatter-proof overflow container made of polycarbonate and bacterial filter on the front (effectiveness 99.97 %, particle size 0.3 μm) REF: HAG02-C2RV-ZGA (Vacuum range: 0 – 250 mbar / Housing colour: grey) Also available with direct connection DIN plug 13260 I 1.5 m pressure tubing with ZGA plug and bracket for wall rail claw. Also available with digital manometer.
