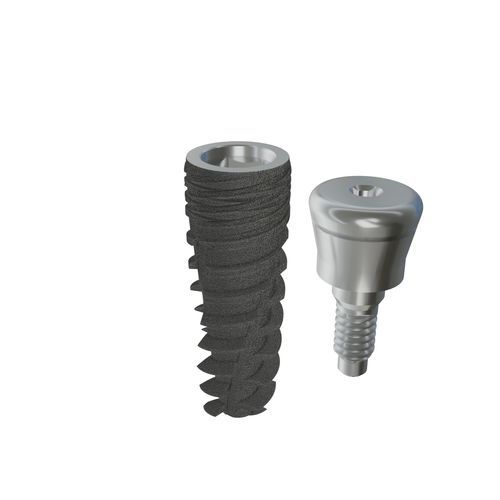

Cylindro-conical dental implant IDBIO
titaniuminternal hexagon

cylindro-conical dental implant
cylindro-conical dental implant
cylindro-conical dental implant
cylindro-conical dental implant
cylindro-conical dental implant
cylindro-conical dental implant
cylindro-conical dental implant
cylindro-conical dental implant
cylindro-conical dental implant
cylindro-conical dental implant
Add to favorites
Compare this product


Characteristics

Shape
cylindro-conical
Material
titanium
Connection
internal hexagon
Implant diameter

3.5 mm, 4 mm, 5 mm
(0.14 in, 0.16 in, 0.2 in)

Implant length

8 mm, 10 mm, 12 mm, 15 mm
(0.31 in, 0.39 in, 0.47 in, 0.59 in)

Description

IDBIO The internal conception IDBIO implant improves significantly the possibilities of treatments thanks to a prosthetic stabilization anchorage that reduces the risks of unscrewing. This self-condensing threaded implant stands 75 N.cm screwing stress without being affected. ID BIO draws attention to itself thanks to this internal hexagonal prosthetic anchorage, compatible with IDI. Externally, it has condensing and penetrating threads, as well as a triple anti-unscrewing groove. The threads' angulations, space and depth were specially studied to higher the stability in all types of bone density and optimize the immediate load of the implant. Its sharp apex is a warranty to an exceptional primary stability. ADVANTAGES Reduces the implant neck bone loss. Better insertion between the adjacent teeth. FEATURES Cylindro-tapered shape Titanium alloy: TAL6V ELI grade 5 S.M.A. TiO2 state of surface Hexagonal Anchorage Anti-unscrewing groove Progressive and condensing threads Penetrating apex LENGTH: 8mm - 10mm - 12mm - 15mm DIAMETERS: 3,5mm - 4mm - 5mm Features of the IDBIO implant: – Cylindro-tapered-shaped – Titanium alloy two phase Ti6Al4V grade 5 – S.M.A. TiO 2 state of surface – Hexagonal connection – Anti-unscrewing groove – Progressive and condensing threads – Penetrating apex *On each implant packaging there is a small colored sticker to match with the implant length. The code for each color is related to the one found on the RBS drills for the implants with a hexagonal connection: 8 mm length 10 mm length 12 mm length 15 mm length
