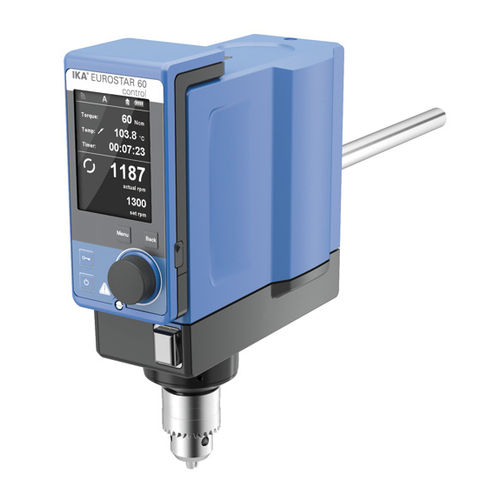

Overhead laboratory stirrer EUROSTAR 60 control
digital

overhead laboratory stirrer
overhead laboratory stirrer
overhead laboratory stirrer
overhead laboratory stirrer
overhead laboratory stirrer
Add to favorites
Compare this product


Characteristics

Type
overhead
Display
digital
Rotational speed

Min.: 30 rpm
(188 rad.min-1)

Max.: 2,000 rpm
(12,566 rad.min-1)

Temperature range

Min.: -10 °C
(14 °F)

Max.: 350 °C
(662 °F)

Description

Powerful laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30-2000|0/30-1300|0/6-2000 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. • TFT display • Programmable functions • Integrated temperature measurement • Interval operation • Timer function • Adjustable safety circuit • Locked function • Infinitely adjustable speed • Push-through agitator shafts • Overload protection • Short-term overload operation • Quiet operation • Error code display • H 67.60 temperature sensor and WH 11 WiCo holder Stirring quantity max. per stirring position (H2O): 40|100|100|150 l Motor rating input: 168|174|135|220 W Motor rating output: 131|142|84|176 W Motor principle: Brushless DC Viscosity max.: 50000|70000 mPas Output max. at stirring shaft: 126|136|84|176 W Permissible ON time: 100 % Torque max. at stirring shaft: 60|100|200|400 Ncm Speed control: stepless Setting accuracy speed: 1 ±rpm Deviation of speed measurement n > 300rpm: 1 ±% Deviation of speed measurement n < 300rpm: 3 ±rpm Stirring element fastening: chuck

VIDEO
