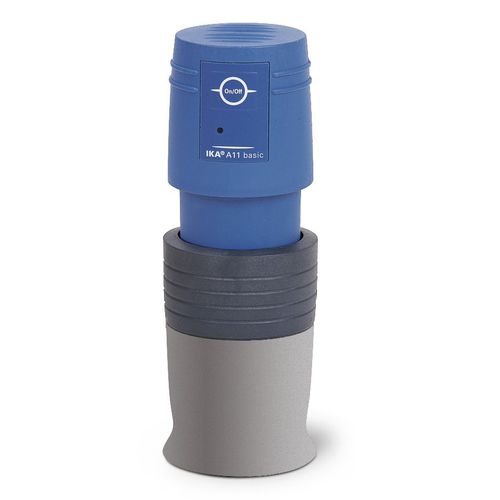

Impact mill A 11 basic
batchlaboratorytabletop

impact mill
impact mill
impact mill
impact mill
Add to favorites
Compare this product


Characteristics

Technology
impact, batch
Applications
laboratory
Other characteristics
tabletop

Description

Batch mill for 2 different grinding procedures: Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery). Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery). • Moist and gluey materials can be pulverized by adding water • Grinding chamber made of Tefcel (PTFE, glass fiber-reinforced) with stainless steel inlet (1.4571), useful volume 80 ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber • Optionally, a 250 ml grinding chamber is available Technical Data Process type : batch Operating principle : cutting/impact Motor rating input : 160 W Motor rating output : 100 W Speed max. : 28000 rpm Circumferential speed max. : 53 m/s Useable volume max. : 80 ml Feed hardness max. : 6 Mohs Feed grain size max. : 10 mm Material beater/cutter : stainless steel 1.4034 Material milling chamber : stainless steel 1.4571 Power-ON time : 1 min Power-OFF time : 10 min Mill feed can be cooled in milling chamber with dry ice : yes Mill feed can be cooled in milling chamber with liquid nitrogen : yes Dimensions (W x H x D) : 85 x 240 x 85 mm Weight : 1.5 kg Permissible ambient temperature : 5 - 40 °C Permissible relative humidity : 80 % Protection class according to DIN EN 60529 : IP 43 Voltage : 220 - 230 / 100 - 115 V Frequency : 50/60 Hz Power input : 160 W
