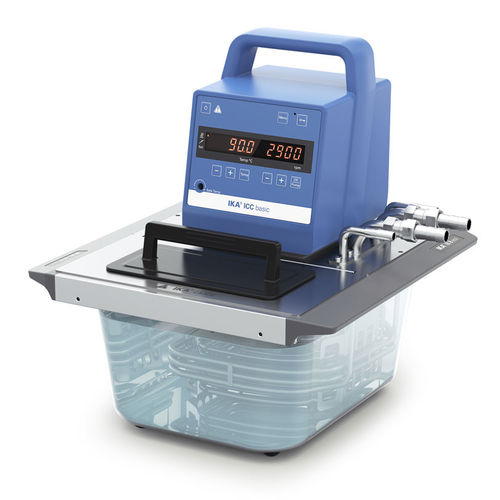

Thermostatic water bath ICC basic eco 8 c
coolingcompactbenchtop

thermostatic water bath
thermostatic water bath
thermostatic water bath
thermostatic water bath
Add to favorites
Compare this product


Characteristics

Temperature control
thermostatic, cooling
Configuration
benchtop, compact, immersion
Heating capacity

2,000 W

Temperature range

Min.: -20 °C
(-4 °F)

Max.: 150 °C
(302 °F)

Weight

10.5 kg, 11.57 kg
(23.15 lb, 25.51 lb)

Height

340 mm
(13.4 in)

Width

145 mm
(5.7 in)

Description

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories. Package includes: ICC basic compact immersion circulator IB 8 eco plastic bath (size S) BS.ICC small bridge ICC basic eco 8 c additionally includes: CS.ICC small cover PCS.ICC pump connection set CC2 cooling coil bath opening: 188 x 105 mm * max. bath opening: 227 x 118 mm ** Immersion depth. 85 mm–125 mm *Dimensions to set plate at the bottom of bath. ** Maximum bath opening dimensions at the upper edge of the bath Max. temperature in the plastic bath (“eco” series): 100°C (water only) Technical data relates to the temperature control instrument included in the package Technical Data Appliance type : Compact immersion circulators Class designation acc. DIN 12876 : III Identification according to DIN 12876 : FL Temperature control : PT 100 Working temperature sensor : PT 100 Safety temperature sensor : PT1000 Working/safety temperature display : LED Temperature stability DIN 12876 : 0.02 ±K Display resolution : 0.1 K Display for operation with ext. sensor : yes Set temperature resolution : 0.1 ±K Warning function optical/acoustic : yes Warning function excess temperature : yes Adjustable safety circuit : 0 - 160 °C Sub-level/over-level protection : yes Pump type : Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) : 0.3 bar Pressure pump (suction side) (0 liter flow) : 0.2 bar
