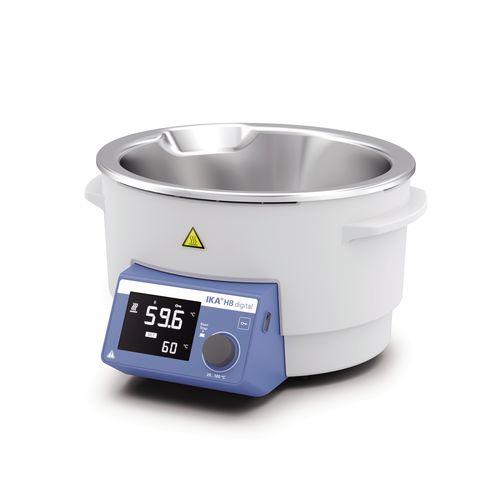

Heating water bath HB
benchtopcompact

heating water bath
heating water bath
heating water bath
heating water bath
heating water bath
Add to favorites
Compare this product


Characteristics

Temperature control
heating
Configuration
benchtop, compact
Capacity

4 l
(1.06 gal)

Heating capacity

1,400 W

Diameter

257 mm
(10.12 in)

Temperature range

180 °C
(356 °F)

Weight

3.9 kg
(8.6 lb)

Height

190 mm
(7.5 in)

Width

330 mm
(13 in)

Description

Compact and ergonomic heating safety bath for all tempering media. • Max. media temperature: 180 °C • Ergonomic handles • Key button to lock heating bath temperature • Clear, black-and-white display • Safety operating modes A, B, C • Permanent set-point/ actual temperature display • USB interface Technical Data Heat control : LCD Set temperature resolution : 1 ±K Controller oscillation (3 l water / 90 °C) : 1 ±K Absolute deviation/mean (3l water / 90 °C) : 2 ±K Controller oscillation (3l Silicone oil / 50mPas / 150°C) : 2 ±K Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C) : 4 ±K Filling point min. : 60 mm Material in contact with medium : stainless steel 1.4404 Fixed safety circuit : 190 °C Adjustable safety circuit : 50 - 190 °C Class designation acc. DIN 12876 : II Inner diameter : 225 mm Outer height : 190 mm Inner height : 130 mm Permissible relative humidity : 80 % Protection class according to DIN EN 60529 : IP 21 USB interface : yes Voltage : 200 - 240 / 100 - 120 V Frequency : 50/60 Hz Power input standby : 3 W
