ECG patient monitor / intensive care / compact / with touchscreen
Model 7800 Ivy Biomedical Systems Inc

{{requestButtons}}

Characteristics

  • Measured parameter:

    ECG

  • Applications:

    intensive care

  • Configuration:

    compact

  • Other characteristics:

    with touchscreen

  • Screen size:

    8 in

Description

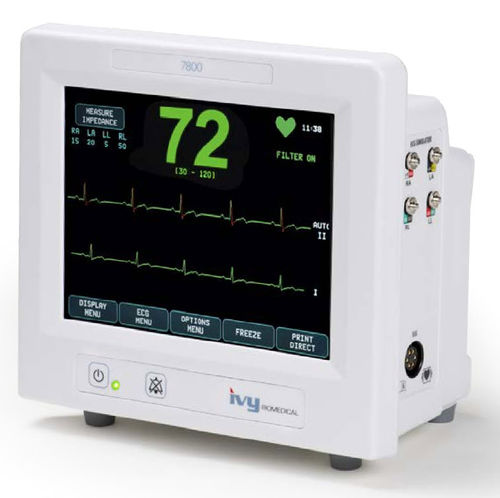

The Model 7800 is Ivy Biomedical’s fifth generation of cardiac trigger monitors intended primarily for use on patients in applications requiring precision R-wave synchronization. Incorporating a simple, easy to use touchscreen interface, the 7800 displays two simultaneous ECG vectors along with the patient’s heart rate.
The Trigger ECG vector (top waveform) can be selected from Leads I, II III or Auto Lead Select.
The Second ECG vector (bottom waveform) can be selected from Leads I, II or III. If required, High and Low heart rate alarm limits can be adjusted to bracket the patient’s heart rate so that a violation of these limits produces an audible and visual indication of the alarm.

The Model 7800 includes an AUTO lead select feature (Trigger lead only). When selected, this feature will determine which lead (I, II or III) provides for the best signal amplitude-to-noise ratio of the ECG signal and thus a more reliable cardiac trigger. The Model 7800 also has special hardware and software that measures skin to electrode impedance, ensuring a reliable scan. The Model 7800 is available with or without an integrated strip chart recorder.
