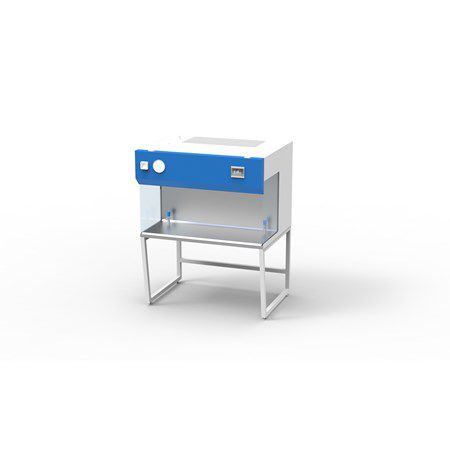

Weighing fume hood KTH-S

containmentlaboratoryfor the pharmaceutical industry

The hood takes the air through prefilter G4 that holds larger particles. The fan directs air to the HEPA absolute filter. Air flows into the workspace and provides air cleanliness. Material: Housing made out of galvanized steel Powder coated in standard RAL 9010 Workspace made out of polished perforated stainless steel (AISI 304) and glass panels Horizontal laminar air flow Protection type: Protection of open pharmaceutical substances Standards: Efficiency 99,95% MPPS according to EN 1822 standard ISO class 5 according to U.S.F.S. 209 E GMP class A Standard options: Sitting work area Microprocessor controlled parameters from control panel Work hours & UV light hours counter Sound & visual alarm Fluo or LED lamp 500 lux Low noise (?56dB) Replaceable HEPA filter Replaceable G4 filter Other options: Air, Gas, Water and/or Vacuum media connections Standing work area Pressure gauge or pressure sensor Electrical socket 230 V built inside the workspace Bactericide UV sterilization light Other dimensions on request Workspace made out of stainless steel (AISI 316) Satin finish on stainless steel
