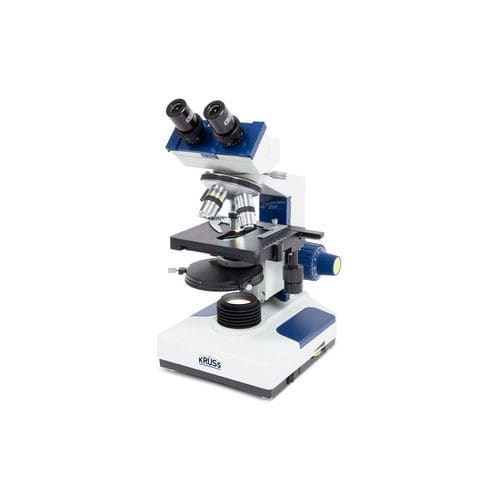

Laboratory microscope MBL2000

opticaleducationbiological

Binocular and Trinocular Microscopes for Laboratory / Schools / Universities MBL2000 Series – Laboratory microscopes Robust and universal. This model is ideal for general microscopy in laboratories, schools and universities. The MBL2000 offers an extensive range of add-on options: for example, with phase-contrast setting, a dark-field condenser, micrometre setup, planachromatic objectives and additional eyepieces. A binocular optical head offers inclined viewing and interocular adjustment. A wide range of accessories is available for all models. •Dioptre compensation with compensation scale •Sturdy metal stand •Coarse and fine focussing, double coaxial (0–200 μm, division 2 μm) •Coarse focussing range: 30 mm •Fine focussing range: 30 mm •Right-side coarse focussing knob with fast focus •adjustment, left-sided knob with quick-focus setting •Graduated XY cross table with coaxial operation •Low-voltage illumination with lighting control and •removable pre-condenser •Twin-lens Abbe condenser: NA 1.25 •Iris diaphragm •Pivoting filter holder •Height adjustment •Glass filters: blue, yellow, green •Power supply: 240 V, 20 W, 50/60 Hz (115 V optional)
