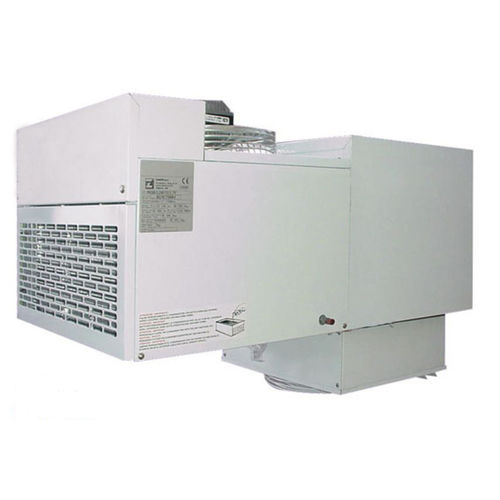

Mortuary cooling unit TKT 200 - R 452A

mortuary cooling unit
mortuary cooling unit
mortuary cooling unit
Add to favorites
Compare this product


Description

Connector-ready cooling unit, which is ready for immediate use. Mounted directly on top of the morgue. The units have a sturdy housing with low-noise emittance, are fully thermal, and equipped with an air-cooled compressor. The safety utilities are in accordance with EN (DIN) standards, VDE regulations and VBG guidelines. Also included is a high-capacity evaporator with automatic defrosting, an electrical temperature regulation and a digital temperature indicator with connection and protective plug. Refrigerant: R 452A Ambient temperature +5°C up to +45°C TECHNICAL DATA Temperature range:-15°C to -25°C Voltange:400 V / 3 Ph / 50 Hz Refrigeration capacity 0°C inside, +40°C outside:2190 Watt Rated Input (when normally running):2000 Watt Rated input:4.7 Amp Peak current:32 Amp Max. current:8.8 Amp Defrost:hot gas defrosting Weight:102 kg Compressor: Type:hermetic Normal power:2200 Watt Condenser: Air flow:1500 m³/h Evaporator: Air flow:2300 m³/h Air throw:10 m (Standard) Dimensions W/D/H:820 x 929 x 427 mm Dimensions opening W/D:750 x 458 mm
