Weighing fume hood XVS

for teachingexhaustlaboratory

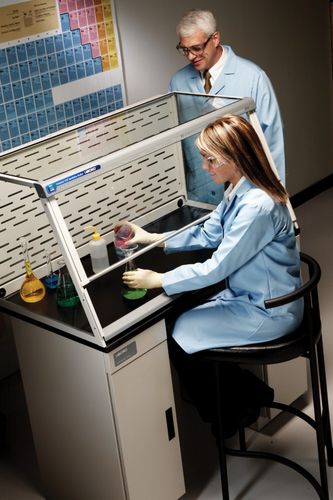

Protector XVS Ventilation Stations may be used as light duty fume hoods, science classroom work stations, solvent cleaning work bays, weighing stations or for pathology and cytology. With glass tops and sides and low profiles, they are well suited for educational settings. Patented (U.S. Patent No. 6,461,233) features including the Clean-Sweep air foil and zone-perforated rear baffle maximize containment. Protector XVS Ventilation Stations may be ducted to the outside or connected to the FilterMate Portable Exhauster for HEPA and/or Carbon Filtered exhaust back into the laboratory. Features (All Models) By-pass airflow design Deep interior of 23.4" or 30.0" depending on the model easily accommodates a variety of apparatus including large balances Patented Clean-Sweep™ air foil Upper containment sash foil bleeds air into the enclosure to direct concentrations of contaminants away from the operator's breathing zone. Upper dilution air supply introduces room air at the top of the sash to dilute concentrations in the upper chamber and bathes the back of the sash with clean air Patented pivoting rear baffle with zones of perforations promotes horizontal laminar airflow to maximize containment Side-entry air foils Glacier white and gray, powder-coated aluminum frame and steel rear plenum and baffle. No unreliable plastic-to-plastic bonding is used Tempered safety glass front sash, sides and top offer excellent visibility, ambient light and protection Ergonomic 20° angled and hinged, pivoting sash with wiping seal. Sashes on 5', 6' and 8' models incorporate an external gas-assist lift
