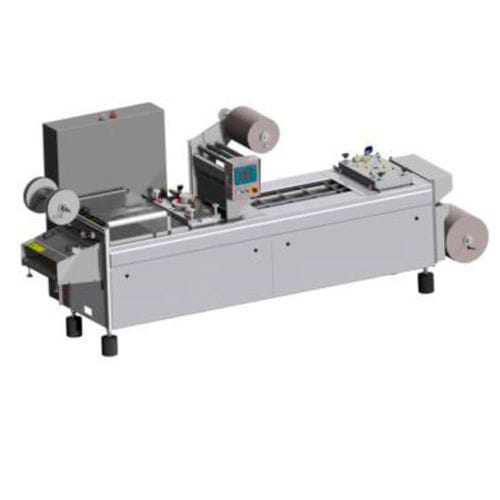

In-line thermoformer MP400
for pharmaceuticals packagingindustrialfor medical packaging

in-line thermoformer
in-line thermoformer
in-line thermoformer
Add to favorites
Compare this product


Characteristics

Type
in-line
Applications
for pharmaceuticals packaging, industrial, for medical packaging
Other characteristics
compact

Description

Thermoforming machine model MP400 (applications: industrial blister packaging, medical and pharmaceutical products…) Length of machine frame - 2.5 m and 3 m Welding protection - Standard to length, not liftable in plexi Standard width (mm) - 320 / 420 Adjustable min. / maxi. width (mm) - Optional 220 / 420 Maximum depth supple (mm) - 70 / 110 Maximum depth stiff (mm) - 50 (1 deposit) Maximum pitch - 300 on the 3 m / 240 on the 2.5 m Diameter of lower supply - 400 mm aluminium Diameter of upper supply - 300 mm aluminium Use of stiff films - maxi. 600 µ Min. / maxi. pace of supple film (strokes per minute) - 6 to 12 strokes per minute Min. / maxi. pace of stiff film (strokes per minute) - 5 to 8 strokes per minute Length - 3.5 m to 4 m Width - 1.1 m Height - 1.8 m Water consumption - 200 l per hour Electricity consumption - 6 kW Air consumption - 36-40 Nm3 per hour
