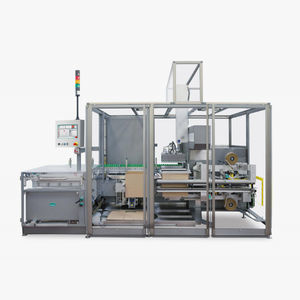

Automatic packaging system MCP
verticalhorizontalcompact

automatic packaging system
automatic packaging system
automatic packaging system
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
horizontal, vertical
Configuration
compact
Product applications
conveyor
Application domain
for industrial applications
Production capacity

10 p/min

Length

Min.: 120 mm
(4.72 in)

Max.: 350 mm
(13.78 in)

Width

Min.: 160 mm
(6.3 in)

Max.: 500 mm
(19.69 in)

Height

Min.: 120 mm
(4.72 in)

Max.: 350 mm
(13.78 in)

Description

MCP are automatic casepacker-pallettizer, horizontal or vertical, automatic monoblock machines suitable to receive cartons from an infeed motorized conveyor belt, collate and introduce them into case, seal it with self-adhesive not overlapping tape and make the cases palletization. The Casepacker-Palletizer is a monoblock machine made up of a Casepacker and a Palletizer. Functions programmed and controlled by an Industrial PC with colour monitor. Configuration and sizes memorization. CASEPACKER SECTION The case magazine is a long conveyor belt placed at 450 mm (17.71”) from the floor level. It allows to place more stacks of flat cases over all its length and one stack in the pick-up area. Cases are picked up from the top of the stack. Cartons, coming from the upstream machine, are horizontally collated on a conveyor belt and directly transferred into the hopper by a Pick & Place which makes cartons stacking from bottom to top. Once collation is completed, the pusher and the hopper, mechanically driven, move towards the open case to achieve cartons transfer. After the cartons introduction inside the case, the latter is transferred to the flap folding and tape closing stations by means of transport chains. The closed shipper is discharged on the motorized roller conveyor for its transfer to the Palletizer picking station.
