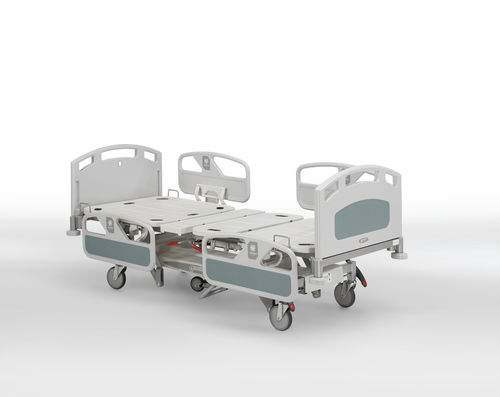

Hospital bed Evoque

mechanicalhydraulicheight-adjustable

The Evoque manual hospital bed has been developed to achieve correct functionality, ergonomics and design Mattress base Structure made of steel tube with epoxy coating Headboard and footboard fixing system, without the need for tools Side arches, which prevent movement of the mattress Lifting systems supported by compasses that provide great stability and load up to 230 kg Design and comfort Four independent modules made of ABS or mesh 100% useful surfaces Articulation of the plane of the trunk and legs using bilateral lever Independent foot plane with mechanical articulation, providing greater ergonomics Cardiac chair position to facilitate patients’ stay in bed Trendelenburg and antitrendelenburg +- 16º using bilateral lever Handling Height elevation from 450 mm to 765 mm, hydraulic operation via bilateral pedal 150 mm centralized and servo-directed brake system Safety Thermoplastic lower fairing that protects the bed mechanisms and facilitates cleaning Folding siderails (optional) with anti-pinch safety system CPR position using gas piston Four bumpers located in the corners of the bed base
