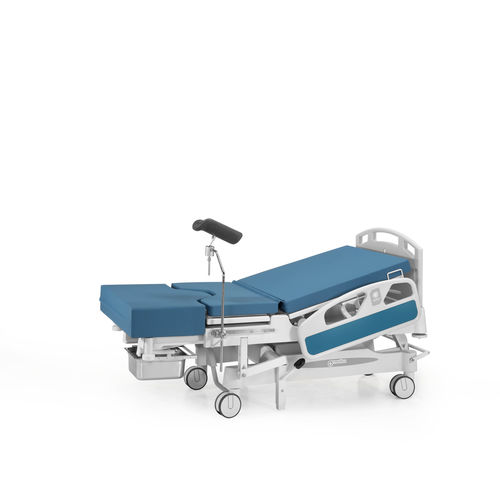

Delivery bed Óptima

electricTrendelenburgheight-adjustable

The Óptima delivery bed offers individual comfort and care thanks to its numerous functions Mattress base Structure made of steel tube with epoxy coating Headboard and footboard fixing system, without the need for tools Side arches, which prevent movement of the mattress Lifting systems supported by compasses that provide great stability in any position and allow a load of up to 230 kg Bumpers on each corner of the bed Design and comfort Independent and removable modules made of ABS 100% useful surface Adjustment of the height and joints of the bed base planes using low-voltage electric motors, complying with EN 60601-1 regulations. Height elevation from 560 mm to 960 mm by electric drive Trendelenburg +-16º Activation of the pelvic area electrically 17º Set of independent siderails made of ABS that facilitates the incorporation of the user as a support point Handling Centralized and servo-directed braking system. Ø150mm double band wheels Manual keypad with easy-to-read and easy-to-use pictograms Bed function override device Includes battery Safety Thermoplastic lower fairing that protects the bed mechanisms and makes cleaning easier Anti-collapse system in the lifting actuators in case of failure Anti-pinch system with automatic engine stop when an obstacle is detected Backrest section emergency release system that allows rapid lowering of the plane in case of emergency, battery failure or power failure
