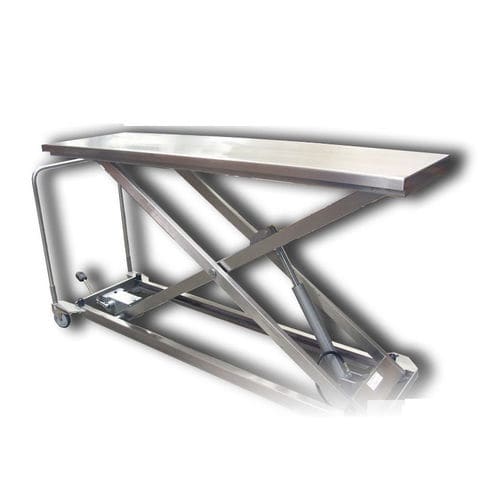

Transfer mortuary trolley MA-1270
for loading

transfer mortuary trolley
transfer mortuary trolley
Add to favorites
Compare this product


Characteristics

Type
transfer, for loading
Lifting height

Min.: 300 mm
(11.81 in)

Max.: 1,755 mm
(69.09 in)

Length

2,135 mm
(84.06 in)

Width

700 mm
(27.56 in)

Description

Body-Lifter, scissor typewith electrical height adjustment Description Sturdy body lifter with electrical height adjustment. For body lifting at body fridges, body deep freezers, coffin lifting / placement into racks and the automatic loading / unloading of the cold rooms for body storage. One-man operation. Especially developed for the lifting of the bodies into the compartments of the body fridges. Incl. 2 x U-shaped transfer rails for accommodation of a transfer body tray with 8 small wheels and fixation mechanism of tray. U-shaped rail with docking guide for body fridges. Solid construction with scissor type mechanics and special frame construction for highest loading. Max. load: 400kg. Features 4 easy turning wheels with bearing will assure best and easy operation / maneuverability. 2 wheels have a foot break system. Wheels in trackless rim construction for use in hospitals (no black rubber stains). Detachable push handle fastened at lower frame. Handle height appr. 950mm. Plastic wall bumpers at front. Power independent operation due to low voltage battery operation. Height adjustment per foot switch. Rechargeable battery with visual battery loading display and acoustic alarm at “low battery situation”. Complete coverage of the lifting mechanism and battery unit. For coffin lifting the MA-1270 is using a special coffin plate with wheels Optional Features Integrated digital scale from 0 – 300kgs Height adjustment from 300 – 2200mms Technical Data Accessories: 230 / 24V battery loading station for 2nd battery (wall mounting) Material: all parts made of stainless steel EN / DIN 1.4301 double polished Weight : 140kgs
