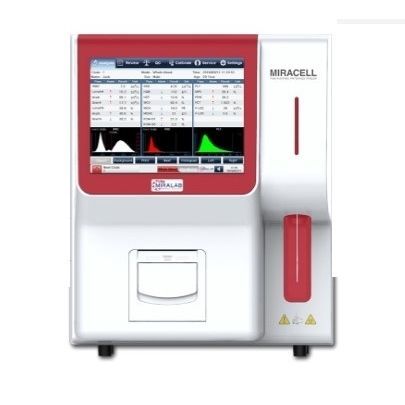

Automatic hematology analyzer MIRACELL

benchtop24-parameter3-part differentiation

• Testing speed:60 second Sample to report, two channels counting • Soak, back& forth flush, real time monitoring function of high pressure burning and automatic block-clearing • 10.4" TFT LCD touch screen, supports high resolution of 800 x 600 • 40000 records storage (all parameters with histograms) • Dual swirling flow and intelligent fitting technology to ensure reliable PLT counting • Software can be updated through USB port • Internal thermal printer (80mm paper width, printing speed of 5 sec./report) • Multi-language user interface Technical Specifications Principle Electronic impedance, SFT method for hemoglobin. Alarm Perfect alarm system make instrument attain optimal condition Block-Clearing Soak and wash back and forth, real time monitoring function of high pressure burning and automatic block-clearing. Storage Automatic storing 40000 samples with all parameters and 3 histograms. Combined search mode as per many conditions. Control mode Management system for quality control, nine kinds of control files. SD, CV and Mean values are provided. Automatic drawing L-J graph. Provide matched blood control. Calibration mode Three calibration modes: Manual, Calibrant and Blood. Reference value setting Man, Woman, Children, Baby and General etc. Operating system Colorful windows interface, no need connecting computer Operating by graphic button with mouse, keyboard or touch screen. Print mode Internal high-speed thermal printer. Optional USB connection supports several kinds of external printer. English printouts. Reagent system Internal high-speed thermal printer. Optional USB connection supports several kinds of external printer.
