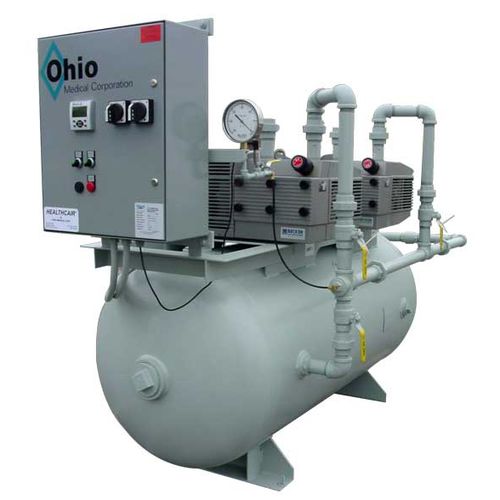

Medical vacuum system D100-T2-V80
rotary vaneoil-free

medical vacuum system
medical vacuum system
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
rotary vane
Options
oil-free
Tank volume

80 gal, 120 gal

Weight

Min.: 740 kg
(1,631.4 lb)

Max.: 2,820 kg
(6,217 lb)

Length

63 cm, 90 cm, 102 cm
(24.8 in, 35.4 in, 40.2 in)

Width

30 cm, 32 cm, 34 cm, 42 cm, 60 cm
(11.8 in, 12.6 in, 13.4 in, 16.5 in, 23.6 in)

Height

77 cm, 78 cm, 80 cm, 83 cm
(30.3 in, 30.7 in, 31.5 in, 32.7 in)

Description

Ohio Medical Oil-Less Rotary Vane, NFPA 99 compliant vacuum system consists of electric motor driven pumps, vacuum receiver, and an electrical control system. The components are modularly assembled to accommodate most existing doorways. The system includes interconnecting piping and wiring to provide a functional operating package with applicable electrical and plumbing connections at the installation site. The packaged unit is factory tested prior to shipment and warranted for a period of 30 months from date of shipment or 24 months from date of start-up. Vacuum Pump Module The Oil-Less Rotary Vane Vacuum pumps are single stage, air cooled, with self lubricating graphite vanes. The vacuum pump assembly includes an integral inlet filter, vacuum regulating valve, check valve, pump isolation valve, a source isolation valve and flexible connector. Vacuum Receiver The Vacuum Receiver is constructed to ASME standards, rated for full vacuum, and include a valved by-pass, manual drain valve, vacuum gauge and the National Board label. System Controls The UL listed electrical motor control system contains a fuseless design in a NEMA 12 enclosure. The “Continuous On Demand” feature stops the operation of the motors during periods of low or no demand. The controls include individual self protected combination motor controls with short circuit, single phase and thermal overload protection, Soft Start Technology, individual 120 volt control circuit transformers with fuseless primary and secondary protection
