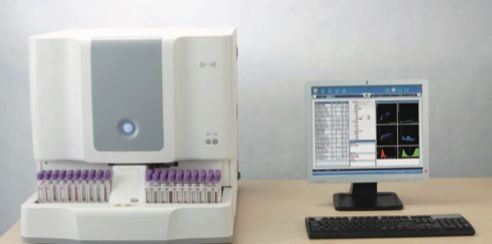

Automatic hematology analyzer PKL PPC 1200H

benchtop28-parameter5-part differentiation

PKL PPC 1200H uses semi-conductor laser for the flow cytometry system. Through calculations of different angles via laser scatters, the instrument provides complete analysis including cell size,granularity and complexity. One channel give complete differentiate WBC Counts lymphocyte , monocyte ,neutrophil, eosinophil and basophil in WOC channel. 3D stereograms Not only scatter stereograms but also 3D stereograms are provided by PKL PPC 1200H than the WBC differentiation would be presented on different views. Laser light multi-dimensional cell classification Resistant RBC mode WIC and WOC for WBC counting Up to 60 samples per hour throughput WBC 5 part diff with sheath reagent only Support both whole blood and capillary blood samples Four reagents for 25 parameters SPECIFICATIONS 28 parameters - WBC,LYM%,MON%,NEU%,EOS%,BASO%,LYM#,MON#,NEU#,EOS#,BAS#,RBC,HGB,HC MCV,MCH,MCHC,RDW_CV,RDW_SD,PLT,MPV,PDW,PCT,P_LCR,P_LCC, RETIC_ABS,RETIC, IRF 2 Histograms for RBC and PLT 2 Scatter grams: 5-part differential scatter gram Eosinophils and Neutrophils scatter gram 2 3-D stereograms Principle of operation - WBC/DIFF: Flow Cytometry, Semi-conductor,Laser light multi-dimensional cell classification WBC Analysis: Optical and impedance measurements RBC/PLT Analysis: Impedance method HGB test: Cyanide-free reagent colorimetry Reagent - Diluent, Sheath, Detergent,Lyse Sampling modes - Whole blood : 20μL Pre-diluted : 20μL Aperture Diameter - WBC 100μ m，RBC/PLT 68μ m Throughput - Up to 60 samples per hour with 50 autoloader positions Data storage - Up to 200,000 sample results with grams Alarms - Error messages Display - PC display Size - 660MM(L)×565MM(W)×545MM(H) Power - 220V,50/60Hz 300VA Weight - 73kg
