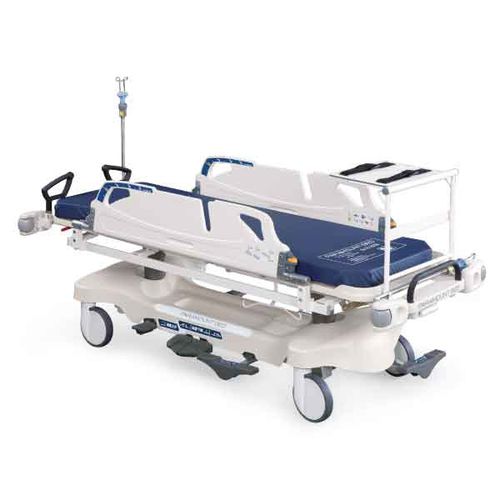

Transfer stretcher trolley KK-810A Series

manualheight-adjustableTrendelenburg

PRODUCT FEATURES Transfer Proper procedure needs to be exercised to safely transfer the patient from the stretcher to the bed. An innovative side-rail design allows medical personnel to carry out this action efficiently and with greater ease. Side-rail can be laid out on a bed positioned next to the stretcher to act as a transfer board, creating zero gap for easy and quick transfer. T-shaped Design Side-rail T-shaped design allows tubes to pass through side-rail for improved fluid drainage. Side-rail can be Fixed Horizontal Level Fixable at horizontal level, where patient’s arm can be placed on for the administration of IV or other treatment. Center Wheel Can be engaged to facilitate direction control, enabling users to navigate the stretcher easily in hectic and dynamic environments. SPECIFICATIONS Angle Back Raise (degree) 0 to 90 Knee Raise (degree) 0 to 40 Trendelenburg / Reverse Trendelenburg (degree) -18 to 18 Dimension Total Length (mm) 2,152 Dimension Total Width (mm) 776 Mattress Base Height (mm) 560 to 890
