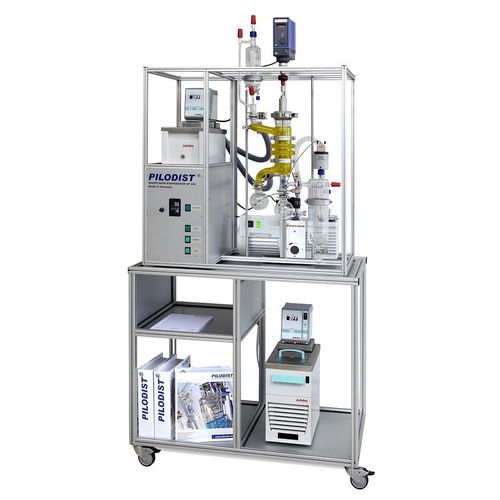

Laboratory evaporator FilmDist SP 200

pilotrotarythin-film

Universal lab-scale apparatus for short-path evaporation. Rotary thin-film evaporator with thermostat mantle and internal condenser for continuous shortpath distillation or gentle concentration of thermally sensible products. Suited for laboratory or pilot operation. The pilot operation data and experimental values can be transferred to bigger systems. The standard system uses glass wiper elements. Other wiper elements are available. Mobile table to accommodate system and accessories can be ordered optionally. Technical Data Feed range 50 – 1000 ml / h evaporator Evaporator material - borosilicate glass evaporator Feed-vessel - 250 ml evaporator Product receivers - 250 ml evaporator Evaporator surface - 200 cm2, short path temperatur Operating temperature - max. 250°C pressure Operating pressure - 0.001 – 1000 mbar stromversorgung Mains Supply - 208 – 250 V, 50 Hz (60 Hz upon request)
