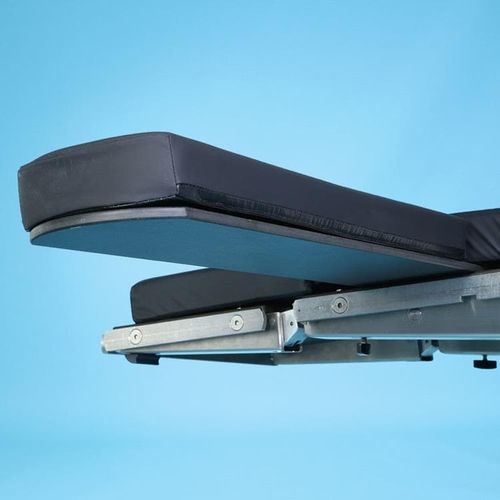

Provides support during injection of contrast materials; slipping easily under patient’s shoulder.
Radiolucent and Phenolic
Slide armboard underneath table pad 10" (25 cm) to the desire position
2" (5 cm) Conductive Vinyl Covered Foam Pad (Deluxe or Softcare) sold separately
Pad attaches to armboard with adhesive-backed hook & loop fastener
6″W x 36″L (15 cm x 91 cm)
INTENDED USE
Intended use is to hold patient’s arm. Range of motion is 180°. The intended users of this device are medical professionals within hospitals and surgery centers.
INSTRUCTIONS FOR USE
Become familiar with patient positioning device’s features before use with patient. Always practice on a nurse, physician or appropriate volunteer prior to using clinically.
Attaching and Adjusting Armboard to Surgical Table
Place armboard underneath table pad to desire position
Detaching Armboard from Surgical Table
Remove patient from surgical table, then remove armboard underneath table pad
GENERAL SPECIFICATIONS
Device Dimensions (maximum)
Length: 36” +/- 0.5” (91 cm +/- 1 cm)
Width: 6” +/- 0.5” (15 cm +/- 1 cm)
Depth: .375” +/- 0.5” (.95 cm +/- 1 cm) (without pad)
Device Weight: 2 +/- 0.5 lbs. (.09 +/- .22 kg)
Single-person installation
GENERAL INFORMATION
Product not made with (NRL) Natural Rubber Latex
Device supports 500 lb. (227 kg) proportional patient load (6’4” (193 cm) tall patient per 99% human body model)
Product warranty covers product from manufacturing defects for period of 2 years
CE marked medical device according to MDR (EU) 2017/745
Product is maintenance-free, check product condition before next use
Life of device is 5 years under normal use
