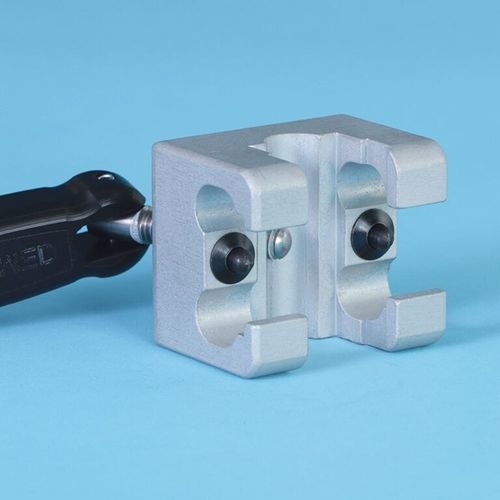

The Universal Rail Clamp snaps on at any rail location and attaches to all surgical table side rails: 3/8″W x 1-1/8″H (.95 cm x 3 cm). The clamp accepts any round mounting posts up to 5/8″ D (1.6 cm) and rectangular mounting posts up to 1″ x 3/8″ (2.5 cm x .95 cm).
Designed for a wide-range of purposes; affixing most operating room table accessories to most OR table designs and brands
Spring-loaded and attaches to O.R. table side rails
Holds all accessories in the vertical and horizontal position
Patient weight capacity is 350 lbs (159 kg)
Locks securely with a simple twist of the ergonomic handle
INTENDED USE
Intended use is to hold surgical accessories on surgical table. The intended users of this device are medical professionals within hospitals and surgery centers.
INSTRUCTIONS FOR USE
Become familiar with patient positioning device’s features before use with patient. Always practice use on a nurse, physician or appropriate volunteer prior to using clinically.
Universal Rail Clamp is spring-loaded - attaches anywhere along surgical table side rail. Attaches to all surgical table side rails that are 3/8”W x 1-1/8”H (.95 cm x 3 cm). Clamp accepts any round mounting posts up to 5/8” (1.6 cm) in diameter and rectangular mounting posts up to 1” x 3/8” (2.5 cm x .95 cm).
Attaching to Side Rail
Attach clamp on rail
Turn clamp handle clockwise to lock securely
Detaching from Side Rail
Turn clamp handle counter-clockwise to unlock and remove from rail
COMPONENT OVERVIEW
Universal Rail Clamp is a surgical table clamp attaching to all U.S. rails. Its function is to hold surgical accessories on a surgical table.
