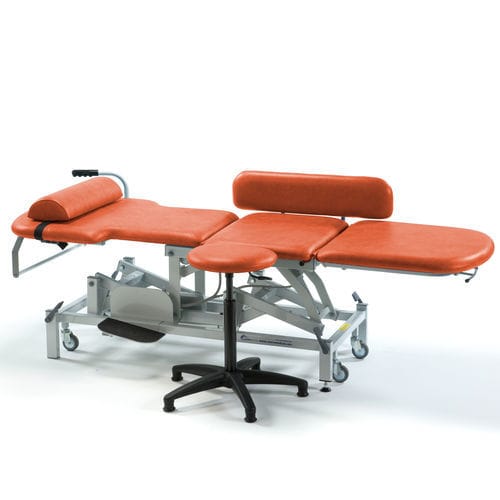

echocardiography examination couch / electric / height-adjustable / 3-section
SM3590 SEERS Medical



  • Applications:

    for echocardiography

  • Operation:


  • Features:


  • Number of sections:



Designed specifically for Echocardiography, this couch has electric operation of height, tilt and backrest angle. The backrest features a cut-away design for improved application of the transducer during scanning procedures and a specially designed stool for the clinician is also provided.

Standard Model Specification Safe working load and lifting capacity (from minimum height) of 240kgs (528lbs = 37.7 stone). Electric adjustment of height, tilt and backrest angle with hand switch control.

Excellent height range from 50-102cm (19”-39”). Electric backrest angle adjustable from horizontal to +85 degrees positive. Electric trendelenberg tilt to 15 degrees.

Manual adjustment of foot section from negative -25 to +70 degrees positive. The foot section incorporates anti-trap design gas strut.

Backrest design with cut-away for improved transducer positioning and special design stool provided for the clinican. Integral footrest for clinician when traditional right hand scanning. Handgrip and side support with cushion for patient positioning and security.
