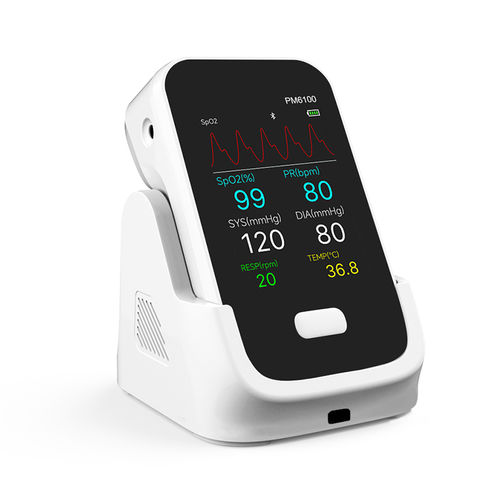

ECG patient monitor / RESP / TEMP / heart rate
PM6100 Shanghai Berry Electronic Tech Co.,Ltd

{{requestButtons}}

Characteristics

  • Measured parameter:

    ECG, RESP, TEMP, heart rate, NIBP, SpO2

  • Applications:

    intensive care

  • Configuration:

    compact

  • Other characteristics:

    Bluetooth

  • Screen size:

    2.4 in

Description

This monitor is capable of monitoring parameters: ECG(Eletrocardiograph), HR(heart rate), NIBP(noninvasive blood pressure), Spo2, Resp(Respration), TEMP(body temperature).

The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently.Besides,this monitor can be connected with the other smart terminals such as PC and Android phones.

SPECIFICATION

Operation system Android

ECG Waveform: Lead I

Band width 0.05Hz-100Hz(3dB) diagnose mode

1-40Hz monitor mode

0.1-25Hz operation mode

Resp Chest impedance method

Scope: 0 bpm to 100bpm

Accuracy: ±1bmp

Temp Type: 20℃-50℃

Accuracy: ±0.2℃

NIBP Mean pressure: 2.7kPa-31.3kPa(20-235mmHg)

Detection accuracy: Static pressure:±4mmHg

SpO2

Detection scope: 35%-100%

Accuracy: ±2% 80%-100%

±3% 70%-79%

Heart rate

Scope: 15bpm to 300bpm

Accuracy: ±1bpm

Bluetooth Bluetooth 3.0 and BLE 4.0

Built-in-Battery

3.7V,1800mAh lithium battery

Size

145mm*85mm*37mm

Weight

240g

Display

2.4 inch color TFT LCD
