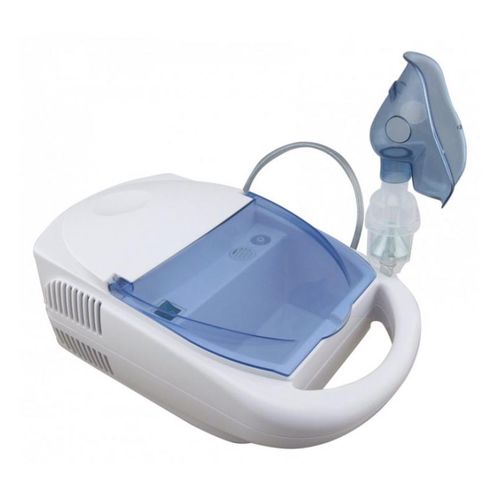

Electro-pneumatic nebulizer A500LW06
for general purposescompacttable

electro-pneumatic nebulizer
electro-pneumatic nebulizer
electro-pneumatic nebulizer
Add to favorites
Compare this product


Characteristics

Type
electro-pneumatic
Applications
for general purposes
Configuration
portable, table, compact
Accessories
with compressor, with mask, with pacifier
Other characteristics
continuous
Flow

Min.: 5 l/min
(1.32086 us gal/min)

Max.: 8 l/min
(2.113376 us gal/min)

MMAD

1.3 µm, 4 µm

Noise level

55 dB

Length

180 mm
(7.09 in)

Width

115 mm
(4.53 in)

Height

300 mm
(11.81 in)

Weight

1.8 kg
(3.97 lb)

Description

A500LW06 compressor nebulizer is developed for the treatment of asthma, allergies and the other respiratory disorders. When the air enters the nebulizer, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled. Features Use hign quality motor, guarantee long time continous works. Dual safety fuse on motor and power cord for more safety. Powerful and silent piston type compressor ( 0.36 Mpa pressure). Produces a high–quality respiratory aerosol with extremely low residual. Power 100V@60HZ,120V@60HZ,230V@50HZ,220V@60HZ Power Consumption 180 VA Max Compressor Pressure Range 29 to 52 Psi / 200 to 360 Kpa / 2 to 3.6 bar Operating Pressure Range 10 to 16 Psi / 70 to 120 Kpa / 0.7 to 1.2 bar Operating Temperature Range 10℃ to 40℃ (50℉ to 104℉) Operating Humidity Range 10 to 90% RH Storage Temperature Range -25℃ to70℃ (-13℉to158℉) Storage Humidity Range 10 to 95% RH Medication Capacity 6ml / 10ml (cc) Average Nebulization Rate ≥0.2ml/min (2% saline solution) Optional Accessory Baby pacifier inhaler, Nose piece. Package Dimension(L×W×H) 210 mm×140 mm×320 mm Gross Weight 2.1 kg
