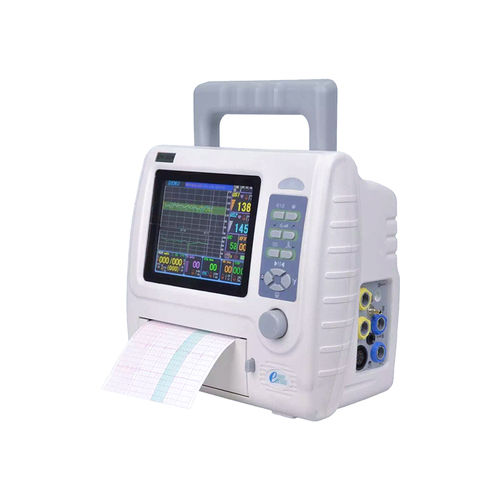

FHR fetal monitor BFM-700M
twin FHRSpO2MECG

FHR fetal monitor
FHR fetal monitor
FHR fetal monitor
FHR fetal monitor
FHR fetal monitor
FHR fetal monitor
Add to favorites
Compare this product


Characteristics

Measured parameters
FHR, twin FHR, SpO2, MECG, NiBP, TOCO
System options
with printer

Description

1. 5.7 inches TFT LCD displays 2 x US and 1x UC data, mother's NIBP, TEMP, RR, SpO2, and ECG main parameters and monitoring trace curve etc. 2. FHR collects signal indication, alarm indication for abnormal FHR, fetal movement indication, and can freeze monitoring status. 3. Can set the time limit (0-99 minutes), and automatically enter dormant state if no signal input. 4. Store monitoring data for 24 hours, with replay function. 5. Coding keyboard adjusts all parameters setting of the unit, convenient to use. 6. Adopt 832 thermal linear array printer, store the data and print rapidly; and printing width is 112mm. 7. The printer parameters can be adjusted as users’ need, including printing paper speed, trace line thickness, signal sampling rate, upper and lower alarming limit, real time, and date. 8. Set-up data and parameters can be automatically saved after power off. 9. The monitoring data can be conveyed to exterior computer through RS-232 or USB port. 10. Trolley (adjustable) for option, convenient to move and operate. Specification US Transducer 9 crystals, wide wave beam Working mode: Pulsed ultrasound Doppler Ultrasonic frequency: 1.0MHz±10% Measuring range: 50-240 BPM Alarm range: Up: 55-240 BPM Adjustable continuously within range Low: 50-235BPM Adjustable continuously within range TOCO Display range: 0-100units (non-linear error: ≤±10%) PC PORT Edition USB 1.1 or USB 2.0; RS-232 THERMAL RECORDER Paper width: 112 ± 2mm effective record width: 105 ± 2mm; Paper length: 15m Recorder density: US: 27 BPM/ CM; UC: 40 BPM / CM Printing speed (adjustable): 1 cm/min, 2 cm/min, 3 cm/min
