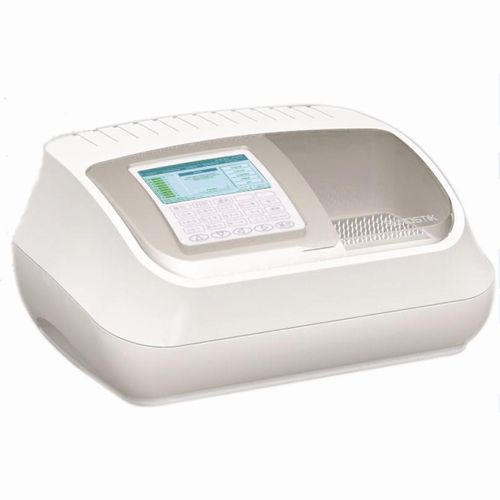

Absorbance microplate reader SPR-960

ELISA96-well

Advanced optical system, ensure accurate result and good repeatability. 8 channel optical fiber system enables 5 secs’ reading for 96 well plate. Bichromatic measurement, multi-calculation methods include ABS, Cut-off, Linearity and Log. Easily programmable and operate through PC software or keyboard Ability to communicate with PC，free PC operating software Plate shaking feature 405nm, 450nm, 492nm, 630nm, 4 free positions Working base on Windows system Control machine, test programming, calculating results and indicating reagent recession curve. Multi-calculation methods on board: linearity, LogX, logY, logXY, Parabola regression, Polynomial regression, 4PL Regression. A complete data administration system for: micro-plate, reagent, patient, laboratory and results Specification Light source: Halogen lamp 8V/50W Filters: 405nm, 450nm, 492nm, 630nm, 4 open positions Photometric Range: 0.000-4.000Abs Photometric Accuracy: ±1%(0.000-2.000Abs) Wavelength Range: 340~750nm Applicable programs: 28 except of PC Measure Mode: Monochromatic , Bichromatic Calculation Mode: ABS; Cut-off; Linearity; LogX; LogY Display: 240*128LCD Interface: RS232, parallel interface for external printer Output: External printer (optional) Power supply: AC220V/110V±10%,50/60Hz Dimension: 440(L)mmX305(W)mmX154(H)mm Net weight: 7kg
