piezoelectric dental scaler / complete set / handpiece / autoclavable
complete set, handpiece
Ultrasonic piezo-electric scaler set.
This set is meant for built-in application and comprises:

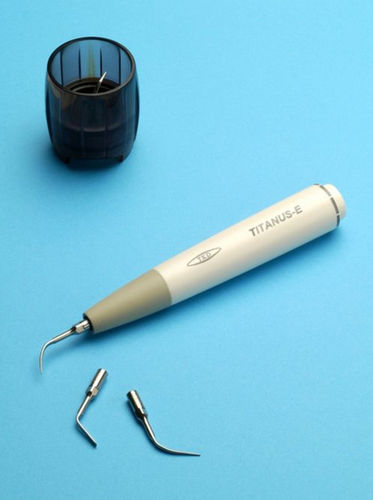

- TITANUS-E piezo-electric handpiece (complete with three inserts, EMS-compatible)
- DYNO dynamometric wrench
- TN250 electronic control board (complete with power potentiometer and knob)
- Silicone hose (available in grey or brown colour)
The titanium transducer of the handpiece produces high reliability and greater power efficiency. Generated mechanical vibrations are absolutely linear and longitudinal.
The sophisticated TN250 electronic control board allows to automatically adjust operating frequency of scaler vibrations to the real resonance load.
This board can optionally directly drive a DC solenoid valve and output power can be adjusted by an external 0-:-5 Vdc signal.
Once wired to the TN250 board, scaler and inserts are galvanically insulated (3000 V insulation), thereby ensuring absolute patient’s safety.
(EMS is a registered trademark of Electro Medical Systems SA)
