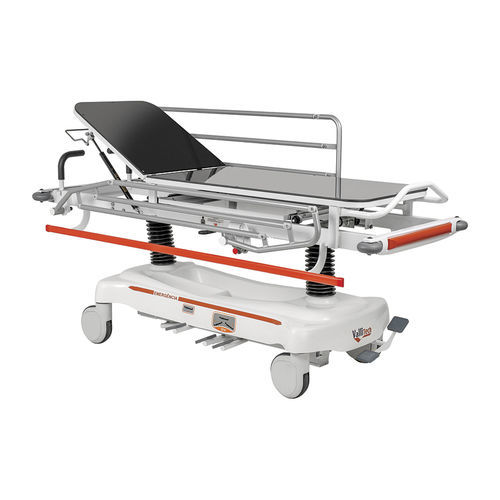

Transport stretcher trolley VLT-714
emergencyhydraulicpneumatic

transport stretcher trolley
transport stretcher trolley
transport stretcher trolley
Add to favorites
Compare this product


Characteristics

Applications
transport, emergency
Operation
hydraulic, pneumatic
Features
height-adjustable, with adjustable backrest, Trendelenburg
Number of sections
2-section
Other characteristics
stainless steel, X-ray transparent
Maximum load

250 kg
(551.16 lb)

Length

2 m
(6'06" )

Width

1 m
(3'03" )

Height

Max.: 0.9 m
(2'11" )

Min.: 0.6 m
(1'11" )

Wheel diameter

150 mm
(5.9 in)

Description

Lower cowl made of highly resistant thermoformed material, with a cavity for the oxygen cylinder and another for the patient's belongings. BASE Lower cowl made of highly resistant thermoformed material, with a cavity for the oxygen cylinder and another for the patient's belongings. LAYOUT Frame with stringers, made from 30 x 70 mm rectangular tubes. The bed is made of 25 x 25 mm square tubes, and is articulated and radio transparent. It has an x-ray drawer system that moves freely underneath the bed, allowing x-rays to be taken along its entire length without disturbing the patient. SHOCKSTOPS Side wall protectors, rotating fronts on the four corners of the stretcher. FINISHES Pushers in both directions of the stretcher. SIDE GUARD RAILS Stainless steel round tube hinged side rails. MOVEMENTS Back movement powered by double pneumatic system, leg movement powered by pneumatic system. Lifting system with two hydraulic columns operated by pedals, allowing for height lifting, trendelemburg and reverse trendelemburg.
