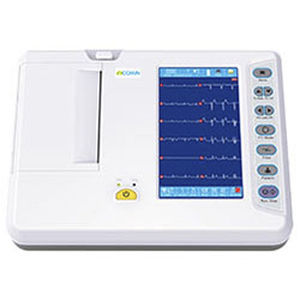

Resting electrocardiograph ECG-8062
6-channeldigitalwith printer

resting electrocardiograph
resting electrocardiograph
Add to favorites
Compare this product


Characteristics

Applications
resting
Number of channels
6-channel
Technology
digital
Options
with printer, with display

Description

1. Features ● Portable 6 channel ECG machine ● Working modes: Manual/Auto/Arrhythmia Analysis modes ● 112mm、3/6 channel format recording ● Built in rechargeable Li-ion battery ● Adaptor 110-230V, 50/60Hz AC power supply ● Realtime ECG waveform, 250 patients save/replay ● Built in USB/RS232 interface(ECGNET software Optional) 2. Technical Specification ● Lead: standard 12 leads ● Input dynamic range: ±10Vpp ● Patient current leakage: <10μA ● Calibrating voltage: 1mV±2% ● Voltage tolerance: ≥±500mV ● Time constant: ≥3.2s ● Frequency response: 0.05~160Hz(-3db) ● Noise level: <15μVp-p ● Input circuit current: ≤0.05μA ● Sensitivity: 2.5, 5,10, 20mm/mV ● Inter-channel interference: ≤0.5mm ● Paper speed: 6.25,12.5, 25,50mm/s(±3%) ● Patient current leakage: <10μA ● Filter: AC filter : 50Hz / 60Hz EMG filter : 25Hz / 45Hz Anti-drift filter : 0.15Hz(Adaptive) ● CMMR: ≥120dB (with AC filter) ● Sensitivity valve: ≤20μV ● Input impedance: ≥50MΩ ● Work modes: MAN、AUTO、ANALYSIS Modes ● Lead acquisition12bit/1000Hz(synchronously 12 leads) ● Input circuit: floating; protection circuit against defibrillator effect ● Display: 7 inch LCD
